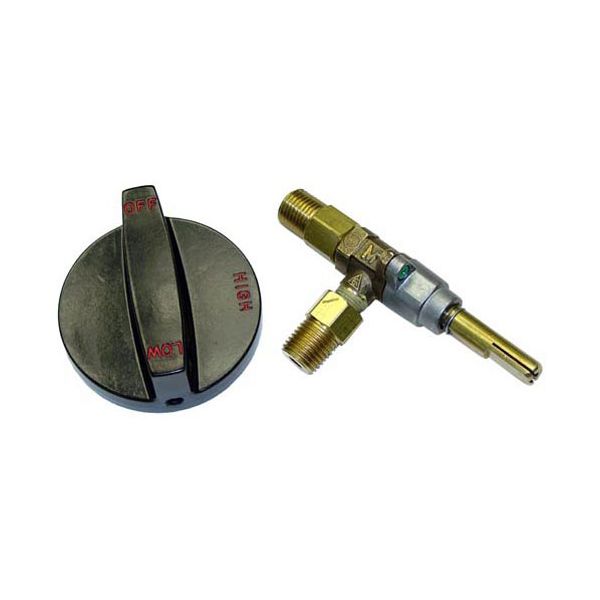

Southbend 1176750 Charbroiler Burner Valve 1/4" MPT X 1/4" MPT
Special Price $262.55 Regular Price $502.98
In stock
SKU
1176750
Manufacturer:
The Southbend 1176750 Burner Valve is a gas control part used to regulate fuel flow to the burner in commercial charbroilers. Installed within the gas system, it allows operators to adjust heat output for grilling applications in restaurant kitchens and foodservice operations. It connects through 1/4 MPT fittings, integrating with the gas supply line and burner assembly to ensure controlled ignition and consistent flame levels. Its operation is essential for maintaining cooking performance, enabling accurate temperature management and supporting secure operation of the equipment.
Dimensions
- Length: 4.5 In
- Width: 3 In
- Height: 0.5 In
- Weight: 0.7 lbs
Product Notes
- Burner Valve W/ Knob,
- [ 1/4" Mpt X 1/4" Mpt ] [ Rotation Off/High/Low-47]
- [Stem Position Down] [Stem Size .240"]
- [Ctr Inlet To End Of Stem 2-1/4"] [Width Angle - 90],
- [ Comes With 2-1/2" Dia Knob, Flat Up, (Off-Hi-Low) ],
- For Knob Only Use # 22-1232
- Southbend Broiler Scb
