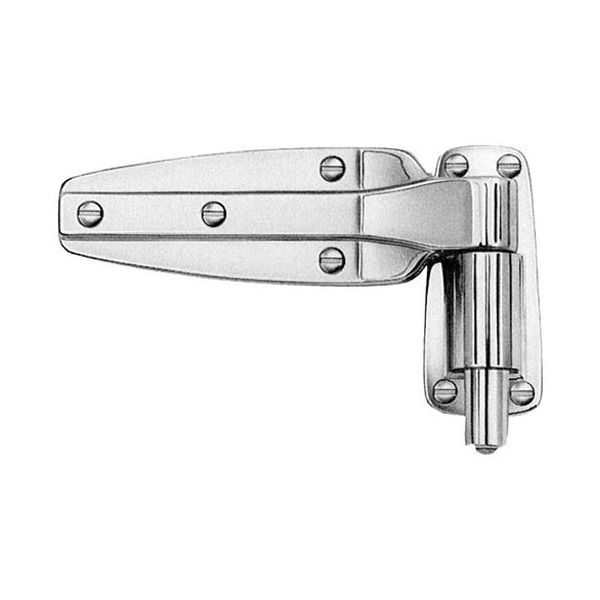

Kason 1248-000016 Reversible Spring Hinge 10-1/8" X 5-21/32"
Special Price $132.25 Regular Price $166.95
Out of stock
SKU
1248-000016
Manufacturer:
The Kason 1248-000016 Reversible Spring Hinge controls the opening and closing movement of heavy doors by using an internal spring and cam mechanism that guides the door through its travel. Its 10-1/8" x 5-21/32" dimensions allow the hinge assembly to fit the designated mounting points while supporting smooth movement and automatic return. This part is attached between the door and frame of compatible commercial and food service appliances, where it forms part of the door support system. It is commonly used to maintain proper positioning and assist repeated opening and closing cycles.
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.5 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge,
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Cast On Strap~
- Number "1248" Is
- Cast On Flange.
- 1-1/8" Offset
- Die Cast Zinc Polished Chrome Plated.
