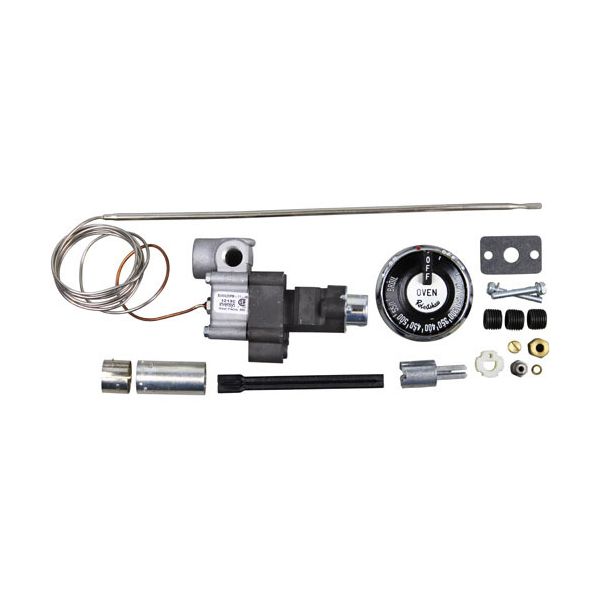

Franklin Chef 143210 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
143210
Manufacturer:
The Franklin Chef 143210 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA operates by sensing temperature changes through its capillary assembly and regulating the operation of connected heating parts accordingly. The internal mechanism responds to the selected dial setting by opening or closing electrical contacts as thermal conditions fluctuate within the appliance. This process supports the control sequence associated with maintaining the designated cooking conditions. The thermostat is installed in compatible commercial equipment, with the sensing bulb extending into the heated area while the dial assembly remains accessible for temperature selection and operational adjustments during use.
Dimensions
- Length: 13.75 In
- Width: 4.25 In
- Height: 3.5 In
- Weight: 1.3 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
- 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
- [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
- Adapters, Gasket, Screws ] Wide Flange.
- Black Dial W/ Adapter = # 22-1028 ]
- Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
- 410,415,416,426).
- Series: Gra & Grax & Grc With S/N 1000000 To 1008568
- &1017255 & After.
- Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
- Us Range Oven Series Performer Ii
- Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).
