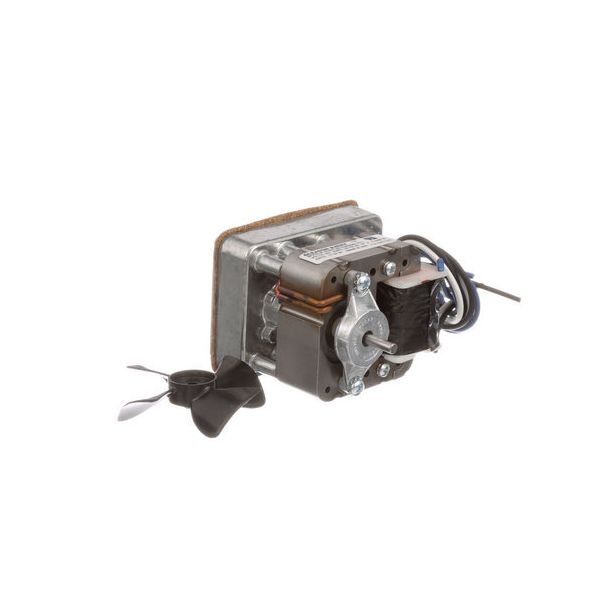

Holman 15205 Drive Motor 1P 5.5 RPM 208/240V
Special Price $226.28 Regular Price $239.70
In stock
SKU
15205
Manufacturer:
The Holman 15205 Drive Motor converts electrical energy into mechanical motion to operate belts and other moving components within commercial equipment. It rotates at a fixed speed of 5.5 revolutions per minute transferring power through the system to keep connected parts moving during operation. This controlled movement supports the equipments cooking or food-handling process by driving the internal mechanism. The is installed inside compatible equipment where it connects to both the electrical supply and the mechanical system assembly. Designed for 208/240-volt single-phase applications it operates as an integral part of the equipment motion system.
Dimensions
- Length: 3.5 In
- Width: 2.5 In
- Height: 5 In
- Weight: 3.3 lbs
Product Notes
- Drive Motor,[ 208/240V, ] [ 1Ph ] [5.5 RPM ] [.18Amp ]
- [Cw Rotation ] [ 5/16" X 1-1/4" Shaft ]
- 3/16" Cooling Fan Shaft. Fan Blade Only = Ap# 281123
- Black & White 208V, Black & Blue 240V Tape The One Not Used
- Belleco Toaster
- Holman Oven 210, 210(Hx,X), 214, 214(Hx,X).
- Toaster 314, 314Hx, 318Hx, 1000, 1100, B710,
- B710H, B814, B814H, B910, Qcs-2, S714,
- T710, T710H, T714, T714H, T814, T814H, T914, Tbh14,
- Th14, Tx914, Dt14, 1100Tw Wall Mounted.
- Qm14, 9G-Qt14(R)-Vxx
- Ocs-3-1000,950H,1300,1400Bh,1600B, Qcs-2-1200B. Rcs
