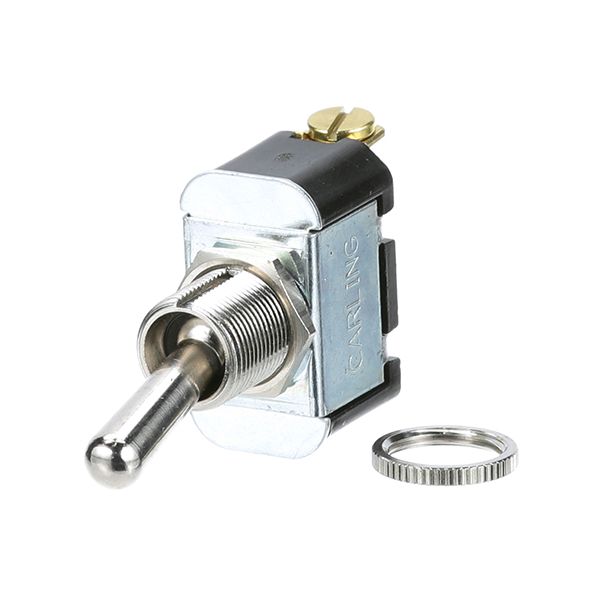

main product photo

Jade Range 2024600000 Convection Oven Toggle Switch SPST On/Off 20A/125V 10A/277V 1/2" Hole

Be the first to review this product
Special Price $60.76 Regular Price $100.92
In stock
SKU
2024600000
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Jade Range 2024600000 Convection Oven Toggle Switch SPST On/Off is a 1/2" hole system that can be used to switch an electrical circuit between on and off by sliding between on and off positions to place or break contact. The actuator of the switch completes or breaks the circuit when the switch is made or broken to control the flow of power to the connected component as per the design. It is fitted on the control panel of compatible equipment, fitted in the specified opening, with the actuator being available on the outside.

Dimensions

  • Length: 2 In
  • Width: 1.125 In
  • Height: 0.625 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-2024600000-toggle-on-off-switch-spst-20a-125v-10a-277v-fits-1-2-hole-78005-2.jpg

Product Notes

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Spst ]
  • [ Terminals 2 (Screws) ] [ Volt/Amp 20A/125V,10A/277V,
  • 12A/250V ] [ Color -Black/Slvr]
  • Alto-Shaam Oven 100-Hsl, 100-Hsl/Cbd, 200-Swl, 300-Hft, Sb.
  • American Permanent Ware Toaster M78
  • Carter Hoffman Warmer Fh80, Cc, Fs-Dmch Series: Bc
  • Ember-Glo Steamer Series: Ar, Fs.
  • Jade Oven Jslb, Jsr
  • Market Forge Oven 2500,2700, M24Sc, M36Sc, Etco
  • Merco Warmer. Pitco Fryer.
  • Pitco Fryer
  • 12,14,14R,18,7,Bf-12,Bf-14,Bf-14R,Bf-18,Bf-24,
  • Bf-34,Bf-7,P-12,P14,P-14,P-14R,P18,P-18,P24,P-24,
  • P34,P-34,P-7,Pm14,Pr14
  • Prince Castle Filter Machines: 99,102, 107, 108, 499.
APW WYOTT:
CARTER HOFFMAN:
CRES COR:
EMBER GLO:
JADE RANGE:
LINCOLN:
MARKET FORGE:
MIDDLEBY MARSHALL:
PRINCE CASTLE:
ROUNDUP:
Reviews
Write Your Own Review
You're reviewing:Jade Range 2024600000 Convection Oven Toggle Switch SPST On/Off 20A/125V 10A/277V 1/2" Hole
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 2024600000 Toggle Switch?

Inspect the switch periodically for loose connections and tighten terminals to ensure reliable operation. Keep contacts clean and free from dust or grease buildup. Avoid moisture exposure and ensure electrical load stays within rated limits for safety.

What are common issues with the Jade Range 2024600000 Toggle Switch?

  • Loose terminal connections causing intermittent power loss.
  • Contact wear leading to inconsistent switching response.
  • Overheating under excessive load or voltage mismatch.
  • Mechanical toggle stiffness or failure to latch properly.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power at breaker and verify no voltage with a multimeter tester before beginning work.

Step2: Remove existing switch and carefully label or note wiring connections for correct reinstallation.

Step3: Connect line and load wires to SPST terminals securely, ensuring tight, insulated connections.

Step4: Mount switch into 1/2" panel hole and tighten mounting hardware firmly in place.

Step5: Restore power and test operation, confirming proper on/off functionality.

Step6: Ensure insulation and safety precautions are followed to prevent electrical shock.
