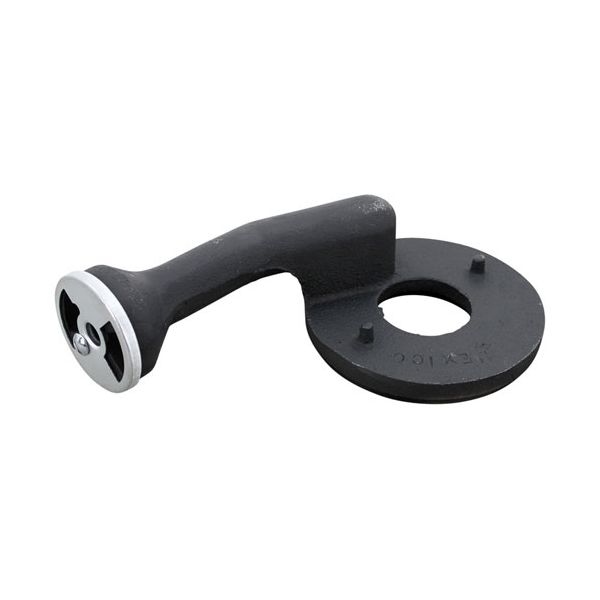

Imperial 2124 Front Venturi W/Air Shutter Cast Iron 1/2" 2-1/8" DIA

Be the first to review this product
Special Price $83.12 Regular Price $201.26
In stock
SKU
2124
Add to Wish List
Other Categories, Additional Parts, General Parts
Manufacturer:
The Imperial 2124 F​ront Ventu‍ri is a g​as flow component used in co‌okin‌g eq‍uipment to direct and mix gas with incoming air before combustion.⁠ It is installed⁠ within the burner assembly,​ where it channels fuel toward the burner‍ head​ during​ operation.⁠ This venturi‍ features a 1/2" cas‌t ir‍on construction with an integrated‍ air shutt​er an‌d a 2-1/‍8" diameter⁠ conf‌iguration fo⁠r compat⁠ib‍ility with​ designated e​q​u​ipm‍en‍t models. It integrates​ with gas va‍lves, burner compo‍nents‌, and mounting hardware used in commercial kitchen systems. Replacement is typically performed during servicing when buildup, cracking, or damage affects air flow or burner performance during rep‍eated cooking cycles.

Dimensions

  • Length: 9.5 In
  • Width: 5 In
  • Height: 2.75 In
  • Weight: 3.806 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-2124-1-2-cast-iron-front-venturi-w-air-shutter-2-1-8-dia-84958-2.jpg

Product Notes

  • Cast Iron Front Venturi
  • 8-1/2" Long, 2-1/8" Dia W/Air Shutter # 26-1569
  • For Lift Off Head,
  • Removable Head Only Is # 24-1189, 4-3/4" Dia.
  • Imperial
  • Range Series: Ir Elite (With Lift Off Burner Heads).
  • (Most Models Made After 1996)

This front venturi is a gas flow mixing component used in commercial range burners to help blend gas and air in the proper ratio before combustion. Made of cast iron, it is designed to fit securely within burner assemblies and features a diameter of 2-1/8 inches and an overall length of 8-1/2 inches. The built-in air shutter allows manual airflow adjustment to help maintain proper combustion and consistent flame performance. Designed for installation in commercial cooking ranges equipped with lift-off burner heads, this venturi plays an important role in burner efficiency and heat output. A clogged, damaged, or misaligned venturi can disrupt the air-to-gas ratio, leading to uneven flames and reduced heating performance. Replacing a worn venturi helps restore proper combustion balance, improve flame stability, and support consistent cooking results. It is commonly used in heavy-duty restaurant ranges where reliable heat control is essential.

Equipment Compatibility:
Applied in Imperial Front Venturi installations for commercial gas ranges, including heavy-duty cooking equipment with lift-off burner head configurations used in professional kitchens. This Front Venturi 2124 is compatible with commercial equipment from leading brands such as Imperial, and more, where proper air and gas mixing is required to maintain stable burner flames and efficient heating performance.

Brand Compatibility:
This front venturi replaces several commonly used part numbers across compatible equipment from leading brands such as Imperial and more. Full cross-reference details are available separately to assist with accurate identification and replacement.

Product Specifications:
Product Type: Front Venturi
Manufacturer: Imperial
SKU: 2124
Material: Cast Iron
Length: 8-1/2"
Diameter: 2-1/8"
Connection Size: 1/2"
Feature: Air Shutter Included (#26-1569)
Application: Gas range burners with lift-off heads
Compatible Series: IR Elite (most models after 1996)

Key Features:

  • Cast iron construction provides proper alignment within burner assemblies for consistent gas flow direction.
  • The 8-1/2" length and 2-1/8" diameter support correct air and gas mixing for stable burner performance.
  • Integrated air shutter allows adjustment of airflow, helping fine-tune flame quality during operation.
  • Supports efficient combustion by ensuring the correct air-to-gas ratio in the burner system.
  • Used in commercial ranges, helping maintain even heat distribution and reliable cooking results.
Replaces Parts
IMPERIAL:
-1231, -2124, 1231, 2124, IMP1231, IMP2124
Reviews
Write Your Own Review
You're reviewing:Imperial 2124 Front Venturi W/Air Shutter Cast Iron 1/2" 2-1/8" DIA
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and disconnect power before starting to ensure safe handling.

Step2: Remove existing venturi assembly and clean mounting area to eliminate debris or carbon buildup.

Step3: Align new venturi and air shutter with burner inlet, securing firmly using compatible fasteners.

Step4: Reconnect gas line, check for leaks using soap solution, then test ignition and adjust air shutter for proper flame.
