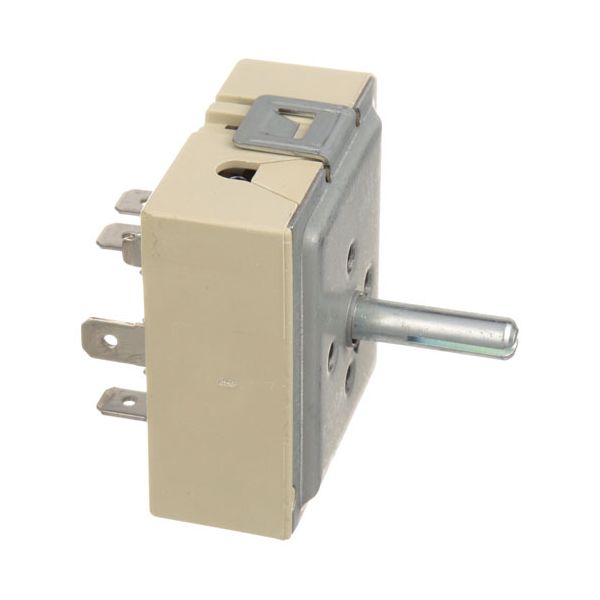

Royal Range 2574 Infinite Switch 15 Amp 208V

Rating:
5 5 1
1  Review Add Your Review
Special Price $23.80 Regular Price $30.91
In stock
SKU
2574
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Royal Range 2574 Infinite Switch 15 Amp 208V controls the flow of electricity to heating elements through cycling the power on and off at variable intervals depending on the setting. This continuous process takes place internally to hold the temperatures constant by regulating the time spent in the active state and the rest time. This type of electrical part is installed on the back of the front control panel. It runs on 208 volts and can operate up to 15 amps to adjust the amount of warmth generated on the cooking surface.

Dimensions

  • Length: 2.25 In
  • Width: 1.875 In
  • Height: 1.75 In
  • Weight: 0.16 lbs
https://partsfe.com/media/catalog/product/r/o/royal-range-2574-infinite-switch-69464-2.jpg

Product Notes

  • Infinite Switch 208V, 13 Amp, Ego, Flat Down,
  • 4 Screw Holes For Mount, Slot In Shaft. D-Stem .184".
  • Old Style "Pilot" Terminal Now Relocated And Labeled "P2"
  • Palnut Mounting Bracket, Converts 2 Screw Mount To
  • Palnut Mount, # 26-2339
  • Palnut Bracket Mounting Screw, Need (2), # 26-2340
ROYAL RANGE:
Reviews 1
Write Your Own Review
You're reviewing:Royal Range 2574 Infinite Switch 15 Amp 208V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Royal Range 2574 Infinite Switch?

Inspect wiring connections regularly and ensure terminals remain tight to prevent overheating or power loss. Clean away grease and dust buildup to maintain stable electrical contact.

What are common issues with the Royal Range 2574 Infinite Switch?

  • Overheating during operation.
  • Inconsistent heat or temperature control.
  • Electrical arcing or sparking at contacts.
  • Knob not responding or sticking.
  • Intermittent or lost power output.

What maintenance is required for the Keating 002574 K-Type Thermostat?

Clean the thermostat probe and capillary regularly to prevent buildup and ensure accurate temperature control. Inspect electrical connections for looseness or corrosion to maintain stable operation. Disconnect power before servicing to avoid electrical hazards.

What are common issues with the Keating 002574 K-Type Thermostat?

  • Inaccurate temperature readings due to worn probe.
  • Thermostat failure to switch heating element.
  • Capillary tube leakage or damage.
  • Loose wiring causing intermittent operation.
  • Erratic cycling due to calibration drift.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect electrical power to the appliance and follow lockout/tagout procedures.

Step2: Remove the control knob and access panel to expose the existing infinite switch.

Step3: Label all wire connections before disconnecting them from the old switch.

Step4: Remove the mounting hardware and take out the old switch.

Step5: Install the new infinite switch and secure it in the control panel.

Step6: Reconnect the wires to the corresponding terminals according to the wiring diagram.

Step7: Reinstall the knob and panel, restore power, and verify proper heat control operation.
