Standard Keil 2860-1214-1110 Cam Hinge 1-3/4" OFST

Be the first to review this product
Special Price $92.91 Regular Price $143.17
In stock
SKU
2860-1214-1110
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Standard Keil 2860-1214-1110 Cam Hinge 1-3/4 in OFST works on the concept of enabling rotational movement between two surfaces that are joined together using a pivoting cam to enable easy closing and opening. The offset design of the latch allows alignment and spacing, which is suitable to use in doors or panels that are required to be placed accurately. This is fitted by attaching it to the gate edge and frame, where it ensures constant movement as it supports the component attached to it.

Dimensions

  • Length: 9.75 In
  • Width: 3 In
  • Height: 2.75 In
  • Weight: 2.66 lbs
https://partsfe.com/media/catalog/product/s/t/standard-keil-2860-1214-1110-cam-hinge-1-3-4-ofst-23589-2.jpg

Product Notes

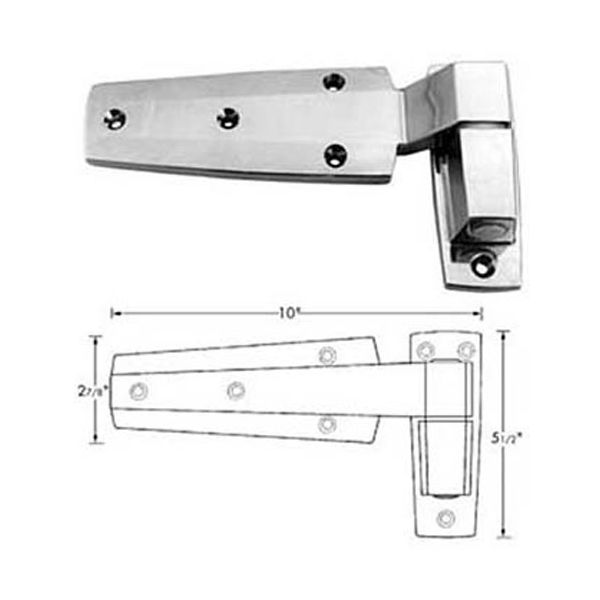

  • Length: 10" Overall | 254 mm Overall
  • Width: 2 7/8" Strap | 73 mm Strap
  • Height: 5 1/2" Base | 140 mm Base
  • Plating: Chrome-Plated
  • Offset: 1 3/4" | 44 mm
CHG:
CHGW60-1175, W60-1175
STANDARD KEIL:
Reviews
Write Your Own Review
You're reviewing:Standard Keil 2860-1214-1110 Cam Hinge 1-3/4" OFST
Your Rating
FAQS
Customer Questions
What maintenance is required for the Standard Keil 2860-1214-1110 Cam Hinge?

Regularly inspect the cam hinge for wear, misalignment, or loose mounting hardware. Lubricate moving parts periodically to ensure smooth operation and reduce friction. Clean debris buildup to prevent obstruction. Ensure proper installation and tighten fasteners to maintain safe performance.

What are common issues with the Standard Keil 2860-1214-1110 Cam Hinge?

  • Hinge misalignment causing improper door movement.
  • Excessive wear on cam components leading to noise.
  • Loosening of mounting screws over time.
  • Stiff or restricted motion due to lack of lubrication.
  • Uneven door closing or sagging issues.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Wear safety glasses and support the door to prevent shifting.

Step2: Remove the existing old hinge and clean mounting surfaces.

Step3: Align the new cam hinge with pre-drilled holes, ensuring proper offset orientation.

Step4: Secure hinge to frame and door using appropriate screws, tightening evenly.

Step5: Check door alignment and adjust cam if needed for smooth closing.

Step6: Test operation to ensure proper swing, seal, and secure fit.
