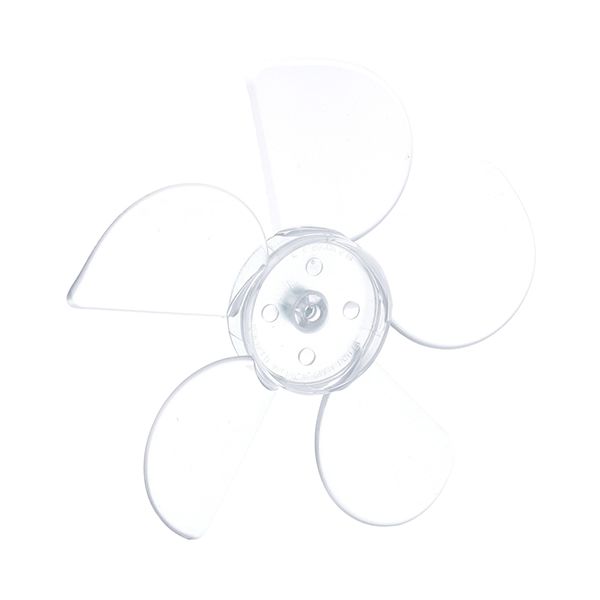

Delfield 3516172 Evaporator 5-Blade Fan W/0.181" Hole CCW Clear Lexan

Be the first to review this product
$11.24
In stock
SKU
3516172
Add to Wish List
Electrical & Hardware, Fan Blades,
Manufacturer:
The Delfield 3516172 Evaporator 5-Blade Fan 0.181" Hole CCW Clear Lexan is a counterclockwise rotating evaporator filter with a motor hub attached to it. The plastic construction has 5 blades that direct the airflow in a uniform manner as the shaft rotates over the centered mounting hole. It is fitted in the cooling part of the compatible refrigeration equipment behind the sealing cover. This element directly communicates with the evaporator motor to facilitate the constant flow of air in the cooling system.

Dimensions

  • Length: 6 In
  • Width: 6 In
  • Height: 1 In
  • Weight: 0.05 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3516172-5-blade-fan-blade-with-181-hole-ccw-90773-2.jpg

Product Notes

  • Fan Blade, 5-1/4" Dia. X .181" Hole, 5 Blades,
  • Ccw, White Plastic
  • Delfield 18648-Ptb, 18648Ptb, 18691-Ptb, 18699-Ptb,
  • 18699Buc, 18699Ptb, 18Sc39R, 225, 225L, 227, 227L, 402, 403,
  • 406, 406-Ca, 406Cp, 407, 407-Ca, 536-Sr68, 536-Srr68,
  • 6025Xl-G, 6025Xl-Gh, 6025Xl-S, 6025Xl-Sh, 6025Xlr-G,
  • 6025Xlr-Gh, 6025Xlr-S, 6025Xlr-Sh, 6125Xl-S, 6125Xl-Sh,
  • 6125Xlr-S, 6125Xlr-Sh, 6151, 7048-M, 7048-P, 7048-S, Asm-36,
  • Asm-48, Asm-60, Ctp8146-Nb, Ctp8160-Nb, Ctp8175-Nb,
  • Delfield, F18Rc48R, F2952C, F5Pr48N, F5Pr72N, Md1R2-S,
  • Md2R2-S, Md6R1-Sh, Mfr1-G, Mfr1-S, Mfr1N-S, Mfr1S-S, Mfri-S,
  • Mfri1-S, Mrpt1-G, Mrpt1-Gs, Mrpt1-S, Mrr1-G, Mrr1-S,
  • Mrr1N-S, Mrr1S-S, Mrri-S, Mrri1-S, Mrrt1-G, Mrrt1-S, N225,
  • N225L, N227, N227L, N8118B, N8130B, N8131-Fa, N8143B,
  • N8144-Br, N8144-Fa, N8146Nb, N8157-Fa, N8159-Br, N8168Nb,
DELFIELD:
Reviews
Write Your Own Review
You're reviewing:Delfield 3516172 Evaporator 5-Blade Fan W/0.181" Hole CCW Clear Lexan
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3516172 Fan Blade?

Inspect the fan blade periodically for dirt buildup and balance. Clean with a mild detergent to prevent vibration regularly. Tighten mounting hardware and ensure alignment. Check for cracks or deformation during service.

What are common issues with the Delfield 3516172 Fan Blade?

  • Imbalance causing excessive vibration during operation.
  • Blade wear, cracking, or bending of fan blade edges.
  • Loose mounting hardware is causing noise and instability.
  • Dirt buildup reduces airflow and efficiency over time.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and ensure unit is off.

Step2: Remove access panel and old fan blade.

Step3: Align new blade on motor shaft (CCW orientation).

Step4: Secure set screw and tighten firmly.

Step5: Reassemble panel and restore power.

Step6: Test airflow and listen for vibration.

Step7: Ensure power is off before handling sharp edges.

Step8: Verify blade clearance from housing.
