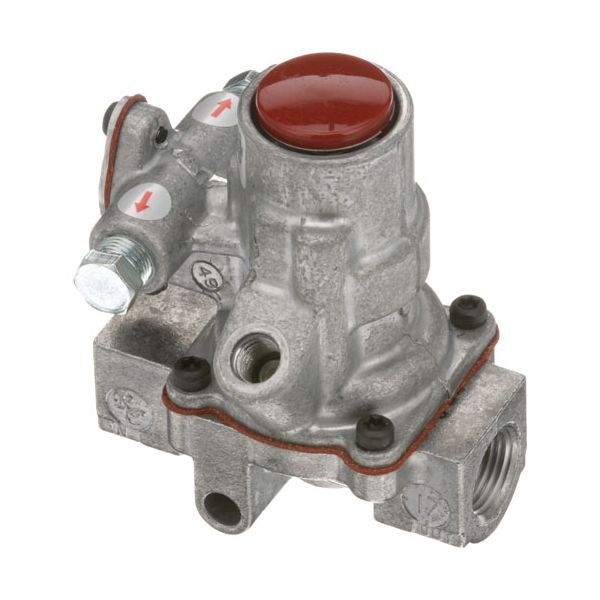

Hobart 497122-1 Gas Griddle Pilot Safety Valve Baso 3/4" FPT LP 10"WC
Special Price $306.24 Regular Price $480.00
In stock
SKU
497122-1
Manufacturer:
The Hobart 497122-1 Gas Griddle Pilot Safety Valve LP BASO operates by managing the fuel supply to the main burner system based on the status of the pilot flame. An internal electromagnet, activated by a millivolt signal from a heated thermocouple, holds the internal spring lock valve open to permit continuous gas transmission. This liquid propane assembly is plumbed inline between the main gas supply line and the burner manifold inside the appliance chassis. It includes 3/4" female pipe thread connections, an internal setting calibrated for 10" of water column pressure, and a dedicated pilot line outlet port.
Dimensions
- Length: 3.5 In
- Width: 3 In
- Height: 3.5 In
- Weight: 0.545 lbs
Product Notes
- Baso Gas Safety Valve, Nat/Lp
- 3/8" Fpt In/Out,Pilot Out Only, Pilot Plugged
- Vulcan Griddle 924A, 936A, 948A, 960A, 972A
- New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
- Product Change: Baso Has Changed This Valve.
- They Turned The Thermocouple Hole 90 Deg.
- It Now Is On The Right Side When Facing The Gas Inlet.
- - Not On The End.
