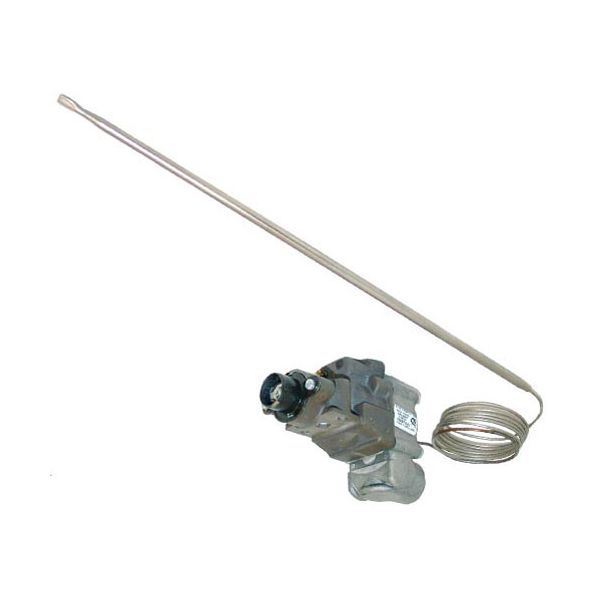

Dynamic Cooking Systems 55764-02 Thermostat BJWA 3/16" X 11-3/16" Bulb 48" CAP
Special Price $180.59 Regular Price $278.25
In stock
SKU
55764-02
Manufacturer:
The Dynamic Cooking Systems 55764-02 Thermostat BJWA with a 3/16" x 11-3/16" bulb and 48" capillary regulates temperature by sensing heat through the bulb and transmitting changes through the capillary tube to activate or deactivate the control mechanism. As temperature fluctuates, the thermostat responds by adjusting the connected heating system to maintain the selected operating range. This component is typically installed within commercial cooking equipment with the sensing bulb positioned in the heated area and the capillary connected to the thermostat control assembly. It operates as an essential part of temperature management during cooking operations.
Dimensions
- Length: 12.3 In
- Width: 2 In
- Height: 3 In
- Weight: 0.71 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa T'Stat 1/4" Npt ] [ Temp Low-500 ]
- [ Bulb 3/16" X 11-3/16" ] [ Cap 48" ] [ Out "C" Rear,
- [ Rotation 0 Degrees Body Down ]
- Dcs Knob # 22-1163 [ 2" Dia ] [ Off-Low-250-500] [Mount
- 11/16"][Notch Down], 1-3/16" Protrusion
- Dynamic Cooking Systems
- Oven Range - Oven Section.
