main product photo

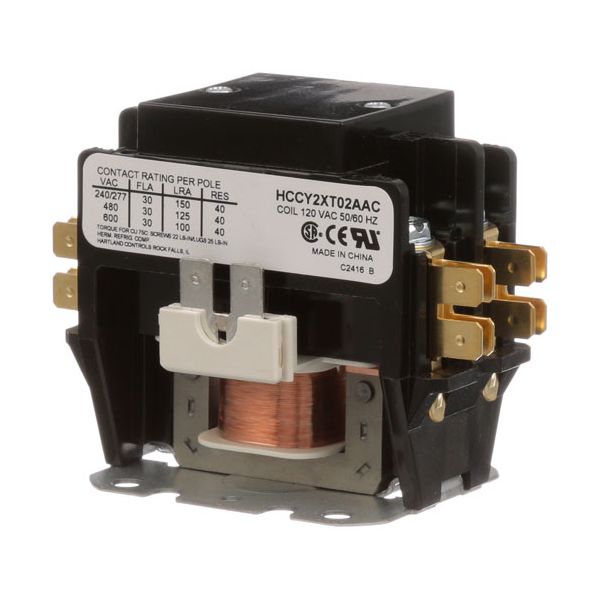

Jackson 5945-109-05-69 2-Pole Contactor 110/120V 50/60Hz

Be the first to review this product
Special Price $35.63 Regular Price $46.27
In stock
SKU
5945-109-05-69
Add to Wish List
Electrical & Hardware, Contactors,
Manufacturer:
The Jackson 5945-109-05-69 2-Pole Contactor 110/120V 50/60Hz is an electromechanical switch that conducts electrical power to high-load components by opening and closing its internal contacts when the coil is activated. It is fed with the rated control voltage, and when it is operated, the two poles are closed to allow the current to be passed to heaters, motors, or other powered circuits. It is installed in the electrical enclosure or control panel of the equipment, and its terminals are connected to control wiring and load lines. safety interlocks and harnesses to align power switching in the system.

Dimensions

  • Length: 3.5 In
  • Width: 2.75 In
  • Height: 2.25 In
  • Weight: 1 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-5945-109-05-69-2-pole-contactor-110-120v-30-amp-96768-2.jpg

Product Notes

  • Hartland Contactor
  • 2 Pole
  • 110/120 Volt
  • 30 Amp Inductive
  • 40 Amp Resistive
CECILWARE:
GENERAL ELECTRIC:
GRINDMASTER:
SOUTHBEND:
Reviews
Write Your Own Review
You're reviewing:Jackson 5945-109-05-69 2-Pole Contactor 110/120V 50/60Hz
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 5945-109-05-69 Contactor?

Inspect contacts regularly for pitting or arcing and tighten electrical connections to prevent overheating. Clean dust buildup to maintain accurate switching performance. Proper maintenance ensures consistent operation and reduces failure risks. Always disconnect power before servicing for safety.

What are common issues with the Jackson 5945-109-05-69 Contactor?

  • Contact pitting or welding from excessive arcing wear.
  • Coil burnout or failure at supply fluctuations.
  • Intermittent switching or contact chatter during operation.
  • Overheating due to loose connections and resistance buildup.
  • Voltage drop causing unreliable operation under load.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off main power and verify zero voltage for safety.

Step2: Mount contactor on DIN rail or panel using screws securely.

Step3: Connect line and load terminals according to wiring diagram.

Step4: Tighten all connections and ensure insulation, check for loose wires.

Step5: Restore power and test switching operation under load.
