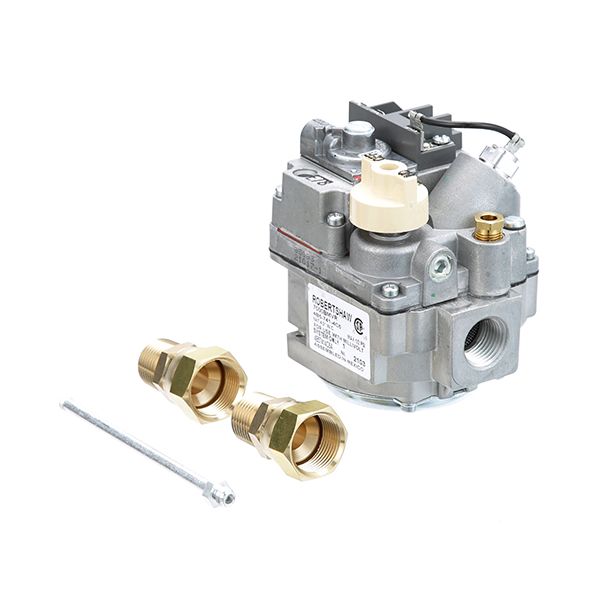

Regulates the supply of natural gas to the burner system by controlling the opening and closing of the internal gas passage. The Pitco 60203001-CL Fryer Natural Gas Valve operates through a 24V electrical control circuit, the 4.0" WC specification identifies the gas pressure setting, responding to signals from the equipment's control system to manage fuel delivery during the heating cycle. Its valve configuration supports controlled fuel flow between the gas supply and burner assembly, helping coordinate gas delivery with the equipment's heating requirements.
Gas Flow Regulation:
Controls when natural gas is permitted to reach the burner assembly. When the valve receives the appropriate electrical signal, its internal mechanism changes position to allow gas flow. When the heating demand ends, or the control signal is removed, the valve closes the gas passage, helping stop fuel delivery as required by the operating sequence.
Electrical Actuation:
Uses a 24V electrical control signal to actuate the internal valve mechanism. The electrical response allows the equipment control system to coordinate gas delivery with the burner operating cycle, helping synchronize fuel availability with heating demand.
Replacement Guidelines:
Replace the Fryer Natural Gas Valve if it is damaged, cracked, corroded, leaking, or no longer provides proper gas-flow control. The part number 60203001-CL, Natural Gas configuration, 1.2" FPT connection, and 24V electrical specification should be verified before replacement to ensure the correct gas valve is selected. Replace the valve if deterioration affects gas flow, connection integrity, sealing, valve operation, or normal equipment operation.
Common Failure Symptoms:
- Irregular gas flow to the burner.
- Burner operation affected by inconsistent fuel delivery.
- Valve fails to respond correctly to electrical control signals.
- Valve fails to open or close as intended.
- Visible physical damage or deterioration.
- Heating-cycle interruptions associated with gas-flow control.
Equipment Compatibility:
Verify that PITCO part number 60203001-CL matches the equipment documentation before purchasing. Confirm the applicable fryer configuration, natural gas valve specifications, and manufacturer parts information. Match the complete fryer model number to part number 60203001-CL to confirm the intended application.
Technical Specifications:
Brand: Pitco
Part Number: 60203001-CL
Component Name: Fryer Natural Gas Safety Valve
Voltage: 24V
Valve Size: 1.2" FPT
Pressure: 4.0" WC
