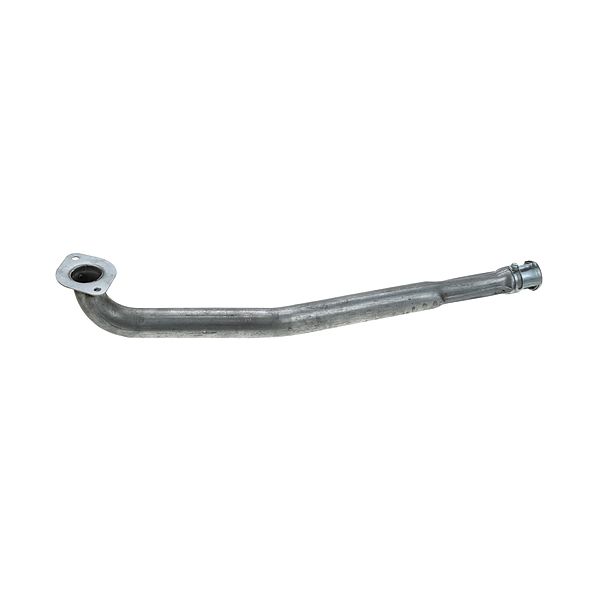

Hobart 714237 Mixer Rear Venturi
Special Price $159.10 Regular Price $245.14
In stock
SKU
714237
Manufacturer:
The Hobart 714237 Mixer Rear Venturi forms an air passage within the back section of the associated commercial mixing assembly. Its reduced internal profile controls airflow as air moves through the passage, creating a change in velocity between the wider inlet and restricted throat. The shaped structure directs air toward the connected section while maintaining a defined route through the housing. Mounting interfaces position the part against the surrounding structure, keeping the passage aligned with adjoining openings. The venturi arrangement supports controlled air movement within the mixer during operation phases.
Dimensions
- Length: 5 In
- Width: 17 In
- Height: 2.625 In
- Weight: 0.55 lbs
Product Notes
- Steel Rear Venturi, 17" Od.
- For Burner Assy # 24-1107
- For Gasket Use # 32-1165
- For Air Shutter Use # 26-1863
- Wolf Range Ch, Chss
