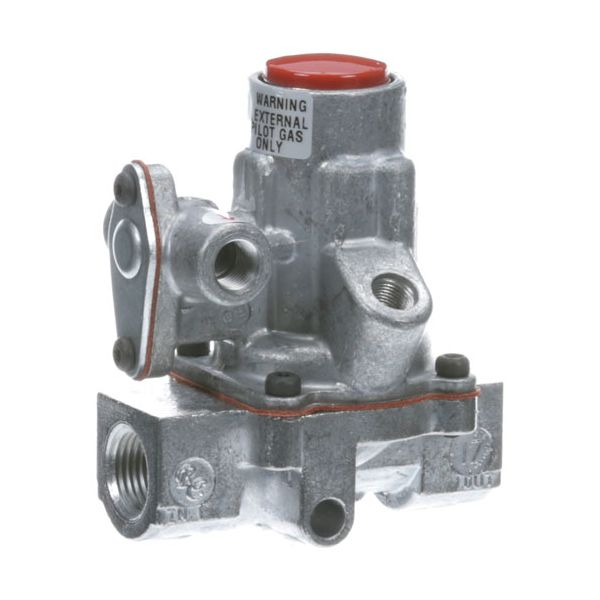

Hobart 715003 Pilot Safety Valve 3/8"
Special Price $310.36 Regular Price $495.00
In stock
SKU
715003
Manufacturer:
The Hobart 715003 Pilot Safety Valve 3/8" is a flame safety component designed for commercial gas-fired appliances. It regulates the flow of gas to the pilot burner and stops the flow of gas when the pilot flame is not lit. It uses a safety sensing system to ensure the internal valve opens only when the flame is ignited. Installed in the pilot gas line between the gas supply and pilot assembly with a 3/8" connection. It is designed to assist in the controlled pilot operation and to improve the safety of the burner ignition and operation of the system.
Dimensions
- Length: 3.25 In
- Width: 3 In
- Height: 2.25 In
- Weight: 0.8 lbs
Product Notes
- [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
- [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
- [ Mfg# H15Ar-3 ]
- Vulcan/Wolf
- Oven Ch & Chss (From 1980-89) Gh, F, Fs.
- New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
- Product Change: Baso Has Changed This Valve.
- They Turned The Thermocouple Hole 90 Deg.
- It Now Is On The Right Side When Facing The Gas Inlet.
- - Not On The End.
