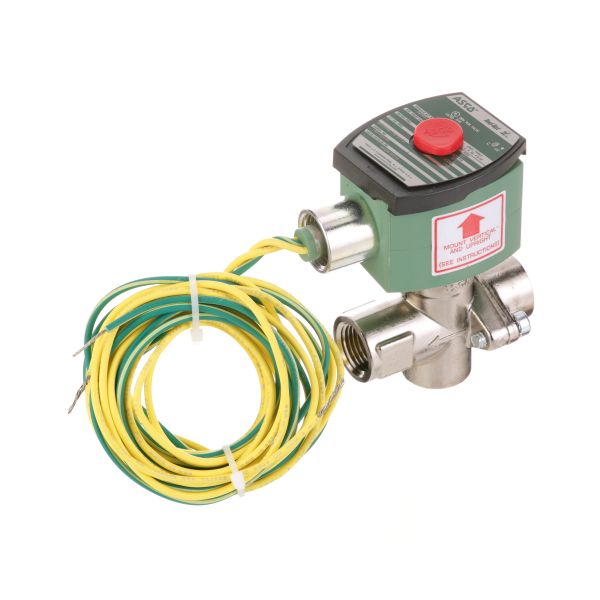

Henny Penny 74582 Fryer Solenoid Valve 1/2" NPT 240V
Special Price $451.80 Regular Price $519.30
In stock
SKU
74582
Manufacturer:
The Henny Penny 74582 Fryer Solenoid Valve 1/2" NPT 240V operates by using an electrically energized coil to open or close an internal plunger, controlling the flow of gas or liquid through the valve body during operation cycles. When voltage is applied, the solenoid coil generates a magnetic field that moves the valve stem to allow flow passage when de-energized, an internal spring returns the valve to a closed position, stopping flow for maintenance and regulation during idle or shutdown states. The valve responds directly to fryer control signals to regulate system operation.
Dimensions
- Length: 1 In
- Width: 1 In
- Height: 1 In
- Weight: 1 lbs
Product Notes
- Solenoid Valve 1/2" Npt Inlet And Outlet, Depth: 3-1/2",
- Depth: 89Mm,Height: 4-3/8",Height: 111Mm,Length: 6Ftwire
- Leads,Length: 1.8Mwire Leads,Material: Brass,National Pipe
- Taper: 1/2"Inlet And Outlet,Plating: Nickel-Plated,
- Pressure: 15Psimaximum,Temp Range: 192 Maximumc,Temp Range:
- 380 Maximumf,Terminals: Wire Leads,Product Type: Normally
- Closed,Ul Listed: Y,Voltage: 240V Ac,Wattage: 20.1 W,
- Weight: 2.065Lb,Width: 2-1/16",Width: 52Mm,
