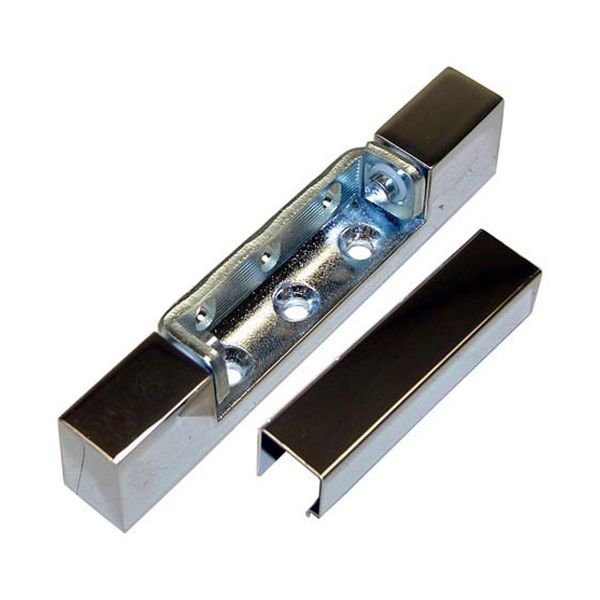

main product photo

Vulcan Hart 960616 Edgemount Door Hinge W/7/8" Screw Center

Rating:
5 5 1
1  Review Add Your Review
Special Price $15.60 Regular Price $20.25
In stock
SKU
960616
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Vulcan Hart 960616 Edgemount Door Hinge is a replacement part, a 7/8" screw center door hinge, to be used on compatible commercial cooking systems, ovens and ranges. It provides a point by which the appliance door can swing open and close without any difficulty and also keep the door aligned well with the main frame when it is in normal operation. The hinge is installed along the door edge with the required space between the screws and it is connected to the door and cabinet framework to allow it to swing in a balanced manner.

Dimensions

  • Length: 5 In
  • Width: 1 In
  • Height: 5 In
  • Weight: 0.5 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-960616-edgemount-hinge-w-7-8-screw-center-92114-2.jpg

Product Notes

  • Edgemount Hinge
  • Offset 7/8"
  • Length 5"
  • Width 11/16"
  • Screw Centers 7/8"
  • Outside Screw Centers 1-3/4"
  • Door Screw Centers 13/16"
  • Series: 213, 214, R42
FOOD WARMING EQUIPMENT:
FWEHNG 214, HNG 214, HNG-214, HNG214
Reviews 1
Write Your Own Review
You're reviewing:Vulcan Hart 960616 Edgemount Door Hinge W/7/8" Screw Center
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 960616 Edgemount Hinge?

Clean the hinge regularly to remove grease, dirt, and food debris that can affect movement. Pivot points with a food-safe lubricant to ensure smooth operation. Inspect for looseness, wear, or corrosion and tighten mounting hardware as needed. Proper upkeep helps maintain door alignment and secure operation.

What are common issues with the Vulcan Hart 960616 Edgemount Hinge?

  • Stiffness or restricted movement due to grease buildup.
  • Loosening of mounting screws over time.
  • Misalignment causing improper door closing.
  • Wear on pivot points leading to uneven motion.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off equipment and ensure the surface is cool before starting.

Step2: Remove the old hinge by unscrewing mounting hardware.

Step3: Align the new hinge with existing mounting holes.

Step4: Insert and tighten the center screw securely.

Step5: Attach the door or panel to the hinge.

Step6: Check alignment and adjust if needed.

Step7: Test movement for smooth operation and secure fit.
