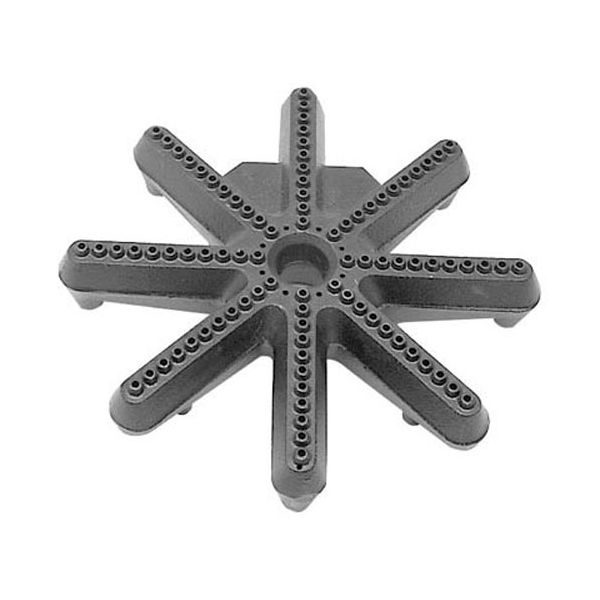

Montague B-17A Cast Iron Burner Head 8-3/4" DIA
Special Price $105.20 Regular Price $254.71
In stock
SKU
B-17A
Manufacturer:
The Montague B-17A Cast Iron Burner Head distributes the fuel mixture across a circular outlet pattern where ignition takes place above the cooking section. The 8-3/4" DIA measurement establishes the overall diameter of the system, determining the size of the discharge surface surrounding the outlet openings. The formed body channels the incoming mixture evenly before combustion occurs. Its circular profile influences how the flame develops across the heating area, producing a balanced distribution from the arranged outlet pattern rather than concentrating heat at a single place.
Dimensions
- Length: 8.5 In
- Width: 8.5 In
- Height: 2 In
- Weight: 6.125 lbs
Product Notes
- Cast Iron Top Burner Head
- 8-3/4" Dia, 8 Legs On Star Design,
- Rectangle Inlet, 2 15/16" Screw Ctrs
- For Gasket Use # 32-1331
- Ss Machine Screw(2) 1/4- 20 X 1" Not Supplied.
- Montague Range Sreies 136, V136
