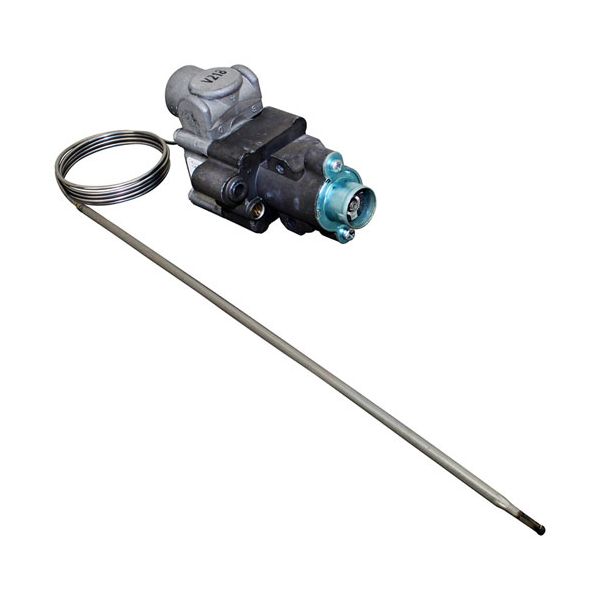

Southbend B940000201 Thermostat BJWA W/3/16" X 12" Blub 36" Capillary & Stem
Special Price $406.06 Regular Price $791.54
In stock
SKU
B940000201
Manufacturer:
Southbend B940000201 Thermostat is a capillary-style temperature controller that is used to monitor and control heat in commercial cooking equipment. It works by detecting temperature variations using a 3/16-inch by 12-inch bulb which provides information to the control to either open or close the heating circuit when necessary. The sensing bulb is fitted in the heated space with the 36-inch capillary and stem connecting it to the control mechanism. This thermostat is a primary control element in ovens, ranges, and griddles, which assists in maintaining uniform operating temperatures and in providing appropriate system operation in the normal operation.
Dimensions
- Length: 12.5 In
- Width: 6.7 In
- Height: 2 In
- Weight: 1.02 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- Temp Low-150-500, Bulb 3/16" X 12", Cap 36", Out 7/16" Cct
- "C" Rear, Rotation 90 Cw
- For 300 & 400 Series Use Dial # 22-1381 W/ 1-3/8"
- Stem. Southbend Oven Series: 400 After 10/97. Series: 300
- 1/88 & After. (Units Prior To 1/88 Use Type Bjfma T'Stat
- # 46-1048 W/[Pilot Fitting )
- Dial To Use # 22-1210 Off-Low-250-500
- ***461285 Is Thermostat Only.
- If Southbend B94-00002-01 Kit Is Needed, Use Ap# 8013586.
- If Southbend B94-00001-01 Kit Is Needed, Use Ap# 8013587
- ***
