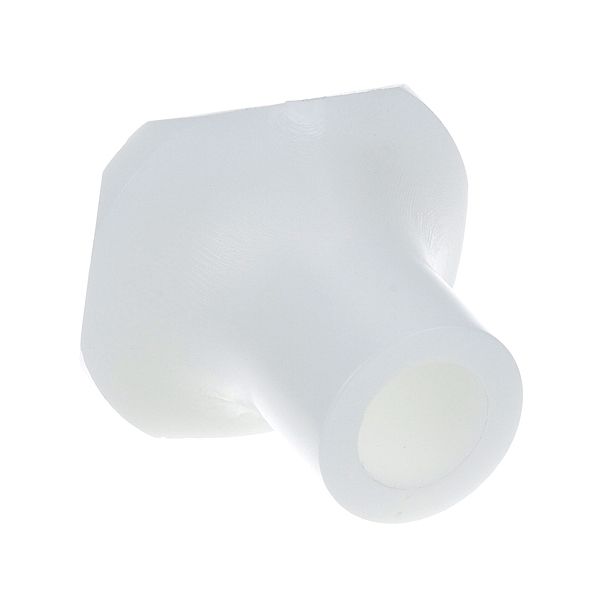

Champion 507446 Dishwasher Wash Arm Bearing
$204.71
Out of stock
SKU
507446
Manufacturer:
The Champion 507446 Dishwasher Wash Arm Bearing forms the contact point between the rotating shaft and its stationary support. Its circular inner surface accommodates shaft movement while the outer section remains seated within the mounting area. Water pressure acting on the attached spray assembly creates the turning force, and the bearing keeps that movement centred around the intended axis. The fitted interface limits excess movement between the connected sections, allowing the shaft to rotate without shifting away from its designated position. Its placement establishes the alignment needed for consistent spray distribution inside the chamber.
Dimensions
- Length: 2.25 In
- Width: 2.5 In
- Height: 2.25 In
- Weight: 0.25 lbs
Product Notes
- Wash Arm Bearing
- 2-1/4" Long,
- Champion D-H1, D-H1M3, D-H1M4, D-H1M5, D-H1T, D-H1Tcm4,
- D-H1Tcm5, D-H1Tm4, D-H1Tm5, D-Hb, D-Hbm3, D-Hbm4, D-Hbm5,
- D-Hbt, D-Hbtcm4, D-Hbtcm5, D-Hbtm4, D-Hbtm5, D-Lf, D-Lfm3,
- D-Lfm4, D-Lfm5
