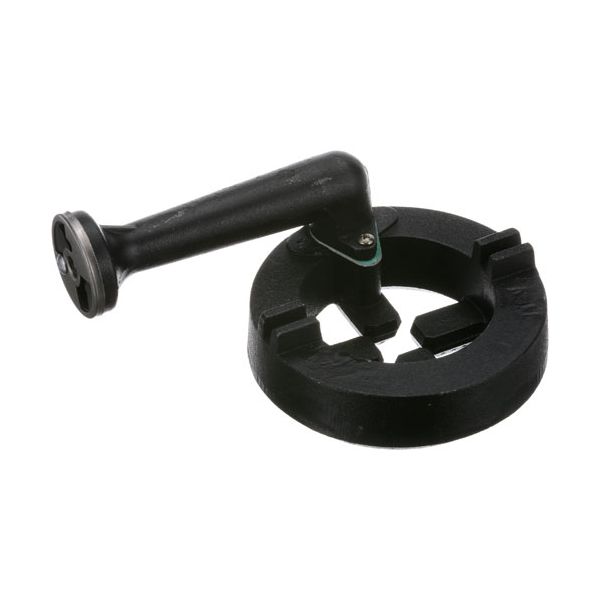

Imperial 20050 9.5" Cast Iron Burner Assembly 6" DIA

A replacement burner assembly designed for commercial gas cooking equipment, this component is built with a 6-inch diameter cast iron burner head and supports stable combustion within compatible range systems. It incorporates integrated air shutter components along with related hardware elements, including air shutter A3737, W-506, #26-2767, burner head #24-1098, and gasket #32-1024 positioned between the head and venturi. These elements work together to maintain controlled air and gas mixing, which is essential for consistent burner performance. This burner assembly operates through a venturi-based gas flow system, where controlled air intake through the air shutter helps maintain balanced combustion and stable flame performance. The cast iron construction supports dependable heat generation in demanding cooking environments. It is commonly used in commercial gas range equipment from Imperial, where stable burner operation is required for consistent cooking performance and equipment reliability.

Equipment Compatibility:
Designed for use with compatible Imperial commercial range equipment, where proper burner alignment and controlled air-fuel mixing between components are required for stable ignition and consistent burner operation.

Product Specifications:
SKU: 20050
Manufacturer: Imperial
Product Type: Burner Assembly
Burner Head Diameter: 6"
Overall Assembly Size: 9.5"
Material: Cast Iron
Air Shutter: A3737, W-506, #26-2767
Burner Head: #24-1098
Gasket: #32-1024 (between head & venturi)
Screw Size: 10-24 x 3/4"
Application: Commercial gas range burner system

Key Features:

• Cast iron burner head supports stable and consistent heat output for commercial cooking applications
• Air shutter assembly regulates air intake to maintain balanced combustion performance
• 6-inch burner diameter designed to support controlled flame distribution in compatible range systems
• Gasket between burner head and venturi helps maintain proper alignment and sealing during assembly
• Venturi-based design supports efficient gas-air mixing for stable burner operation
• Replacement component suitable for restoring burner function in compatible commercial equipment
• Engineered to support reliable operation in high-demand kitchen environments

Replacing the worn burner assembly helped restore proper combustion and consistent burner operation during daily cooking use.
