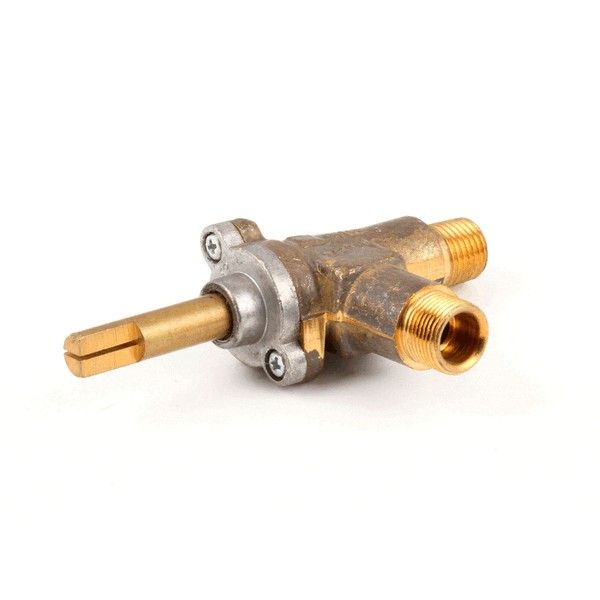

Southbend 1176015 Broiler LP Burner Valve 1/4"MPT X 3/8" CCT
Special Price $175.24 Regular Price $185.64
Out of stock
SKU
1176015
Manufacturer:
The Southbend 1176015 Broiler Burner Valve regulates the flow of propane gas by opening, restricting, or shutting off the supply to the unit during system operation. Featuring a 1/4-inch MPT x 3/8-inch CCT connection for propane gas applications, it adjusts the amount of fuel delivered to the burner to support controlled flame operation. This valve is installed within compatible commercial broilers, where it connects the gas supply line to the burner assembly as part of the fuel control system.
Dimensions
- Length: 4 In
- Width: 2 In
- Height: 1 In
- Weight: 0.25 lbs
Product Notes
- Lp Burner Valve, [ 3/8" Cct X 1/4" Mpt ]
- [ Rotation Off/High/Low] Push To Turn,
- [Stem Position Down] Stem Length 1-7/16", "C" = 1-5/8".
- [Stem Size .240"] [Ctr Inlet To End Of Stem 2.25"]
- [ Angle - 90], [ Comes With 3/8" Cct Inlet Adapter,
- For Knob Use 2.5" Dia. Dial (Off/Hi/Low) ]# 22-1232
- For Valve W/Knob Use # 52-1085
- Southbend Broiler Mr, Mra
