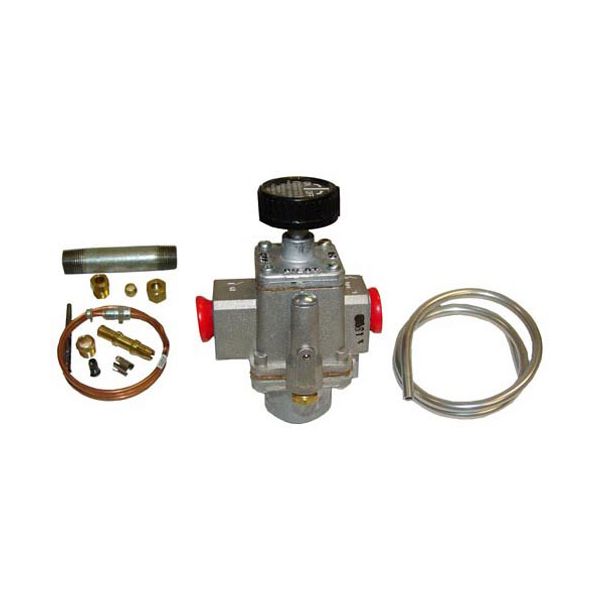

Pitco D5445-00 Safety Kit 3/8" FPT Valve 1/4" Pilot Out Only
Special Price $241.16 Regular Price $378.00
In stock
SKU
D5445-00
Manufacturer:
The Pitco D5445-00 Safety Kit regulates the fuel path via the gas inlet 3/8" and the pilot outlet 1/4" by operating the fuel path in accordance with the operating sequence of the fryer. It controls the flow of gas in the valve assembly, and it is used to link the gas supply to the pilot circuit. With the operation of the fryer, the valve controls the gas flow based on the control system's instructions, which helps ensure the proper sequence of gas flow between the pilot and burner. The assembly is mounted in the gas control area of the fryer for use in operating the system.
Dimensions
- Length: 6 In
- Width: 4 In
- Height: 2.5 In
- Weight: 0.95 lbs
Product Notes
- 1/2" Fpt Safety,2Ea 1/2"Nptx3/8"Npt Reducer Bushing, Pipe
- Nipple 3/8" X 2", 1/4" Cct X 26"
- Pilot Tube W/ Nut And Ferrule, 24" Thermocouple.
- For White-Rogers Safety Valve Only Use # 54-1164
- Anets
- Grill Mg, Sg, Sgc
- Fryer
