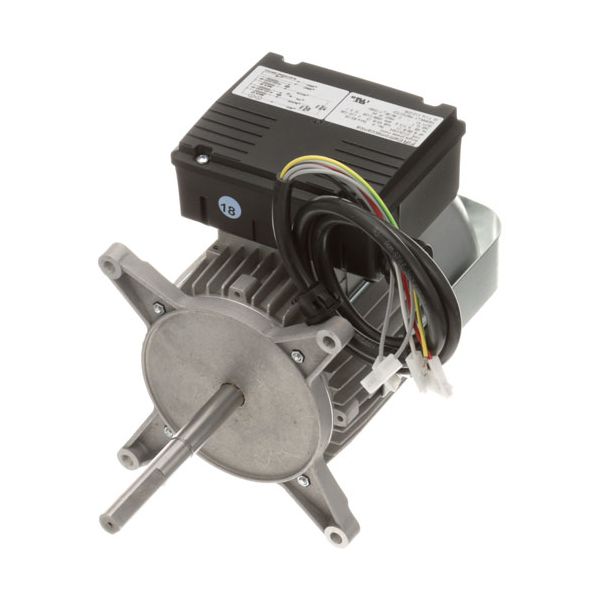

Blodgett 34111 Motor Assembly
Special Price $688.57 Regular Price $1,653.91
In stock
SKU
34111
Manufacturer:
The Blodgett 34111 Motor Assembly is a replacement drive motor that is used to operate certain moving components in cooking appliances. It is mounted to the internal frame of the appliance in which it connects to the mechanical connection to cause motion to the system. The control circuitry provides electrical power to the motor assembly, which in turn converts this into rotational force to maintain a steady airflow or motion needed to ensure even cooking and proper operation. It provides stable mechanical operation as a working better system.
Dimensions
- Length: 19 In
- Width: 10 In
- Height: 10 In
- Weight: 30.5 lbs
Product Notes
- { Old Style }Blower Motor, 2 Speed
- 115V, .75/.21 Hp, 1 Ph, 1725/1140 RPM, 9/4 Amps,
- Y56Z Frame,
- 5/8" X 5" Shaft W/2 Flats, 6-1/4" Ctrs On Mtg Holes 34"
- Armored Cable
- { New Style } 115/120V, 1 Ph, 2 Speed, RPM 1680/1120
- 0.60/0.17 Hp, 7/3.6 Amp, 60 Hz
- Cw Rotation Looking From Back Of Motor Toward The Front
- Follow Installation Procedures Provided With Motor
- Blodgett Blower Wheel A4236,Mb-180, # 26-3047
- Blodgett
- Oven Shog (Before 11-05-05)~
- Ac500Xcel
- Oven Shog After 11-05-05 Use Motor # 68-1058
