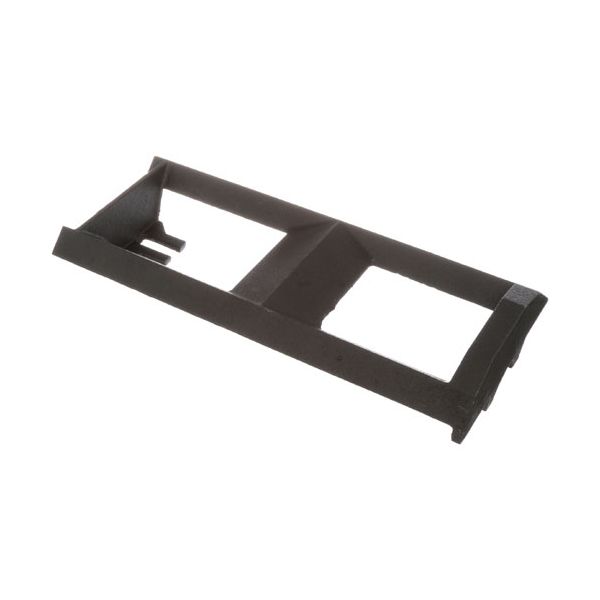

Star Mfg 2F-Z3036 Range Burner Deflector/Radiant Cast Iron 14-3/4" X 6-1/2"

Rating:
5 5 7
7  Reviews Add Your Review
Special Price $73.97 Regular Price $104.48
In stock
SKU
2F-Z3036
Add to Wish List
Griddle & Grill Parts, Griddle & Grill Grates,
Manufacturer:
The Star Mf g 2F-Z3036 Range‌ Burner Deflector/Radi‍ant Cast Iron 14-3/4" X 6-1‌/2" distributes hea‌t across the‍ cook‌ing‌ surface by dir‍ecting and radiating burner warmth within comp‌atible commercial appliances. It acts as a partial shield positioned above the assembly to support even thermal transfer during operations. This component is typically installed insi‌de the section directly ove‌r the space occupied. Designed for commercial kitchen applications it works with connected burner and grate assemblies to sup‌port standard cooking processes, and heat management throughout routine food preparation processes.

Dimensions

  • Weight: 0.955 lbs
https://partsfe.com/media/catalog/product/s/t/star-mfg-2f-z3036-range-burner-deflector-radiant-cast-iron-14-3-4-x-6-1-2-55502-2.jpg
Transfers and distributes heat from the burner assembly, the Star Mfg 2F-Z3036 Charbroiler Burner Deflector/Radiant 14-3/4" X 6-1/2" Cast Iron is a heating component designed for commercial gas cooking equipment. Positioned above the burner, this cast iron radiant deflector supports the cooking surface by helping spread heat across the area beneath the grate. It also provides a protective barrier that helps reduce exposure of the burner to grease, liquids, and food debris during cooking operations.

Heat Distribution:
As the cast iron becomes evenly heated, it spreads thermal energy across a broader section of the cooking area. This reduces concentrated hot spots and supports more uniform heat exposure over the cooking surface. The component also helps maintain consistent thermal output as burners cycle during normal equipment operation.

Burner Heat Management:
Functions within the burner assembly as a heat-deflecting and radiant component. It interacts with the burner and surrounding range structure to influence the direction and distribution of generated heat. The cast-iron construction and specified dimensions identify the component configuration for compatible range assemblies.

Replacement Guidelines:
Replace the burner deflector/radiant when cracking, breakage, warping, or deterioration affects its intended positioning and heat distribution function. The part number 2F-Z3036 should be verified before replacement to ensure the correct component is selected. Replace the component when its condition affects burner coverage, heat distribution, or its intended function within the range assembly.

Common Failure Symptoms:

  • Cracks or fractures in the cast iron radiant.
  • Warping that prevents the radiant from sitting level above the burner.
  • Uneven cooking with noticeable hot and cool spots across the cooking surface.
  • Increased grease or food debris reaching the burner.
  • Visible corrosion or deterioration affecting heat distribution.

Equipment Compatibility:
The Star Mfg 2F-Z3036 Charbroiler Burner Deflector/Radiant 14-3/4" X 6-1/2" Cast Iron is designed for commercial gas cooking equipment. Always verify your equipment model number and original part number before purchasing to ensure the correct fit.

Technical Specifications:
Product Name: Burner Deflector/Radiant
Part Number: 2F-Z3036
Brand: Star Mfg
Material: Cast Iron
Length: 14-3/4"
Width: 6-1/2"

Replaces Parts
STAR MFG:
STERO:
STA2F-Z3036, STAZ3036
Reviews 7
Write Your Own Review
You're reviewing:Star Mfg 2F-Z3036 Range Burner Deflector/Radiant Cast Iron 14-3/4" X 6-1/2"
Your Rating
Related Posts
  1. 10 Reasons First-Party Delivery Is Essential for Restaurant Growth in 2026
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Star Mfg 2F-Z3036 Burner Deflector/Radiant?

Clean regularly to remove grease buildup and food debris to ensure proper heat distribution. Inspect for cracks, warping, or corrosion that affect performance. Season the cast iron periodically and handle with heat-resistant gloves for safety.

What are common issues with the Star Mfg 2F-Z3036 Burner Deflector/Radiant?

  • Rust or corrosion on the cast iron surface.
  • Warping or cracking due to extreme heat.
  • Uneven heat distribution is affecting cooking.
  • Difficulty fitting or aligning the burner.

What does the Star Mfg 2F-Z3036 burner deflector/radiant do?

The 2F-Z3036 is positioned in the burner area of a compatible charbroiler as a burner deflector/radiant. It serves as a heat-management component between the burner and cooking area.

Where is the 2F-Z3036 installed in a Star charbroiler?

The burner deflector/radiant is installed over the burner area within the charbroiler. Its placement corresponds to the designated burner assembly rather than the cooking grate itself.

Why is the Star 2F-Z3036 made of cast iron?

Cast iron is the specified material for the 2F-Z3036 burner deflector/radiant. This material detail helps buyers distinguish the part from similarly shaped deflectors made from other materials.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the range and gas supply, and allow all components to cool fully.

Step2: Remove the cooking grate and lift out the old burner deflector.

Step3: Clean the burner area to remove grease and debris buildup.

Step4: Position the new deflector securely over the burner, aligning it properly.

Step5: Reinstall the cooking grate and ensure stable placement.

Step6: Restore gas supply and test the burner for proper flame and heat distribution.
