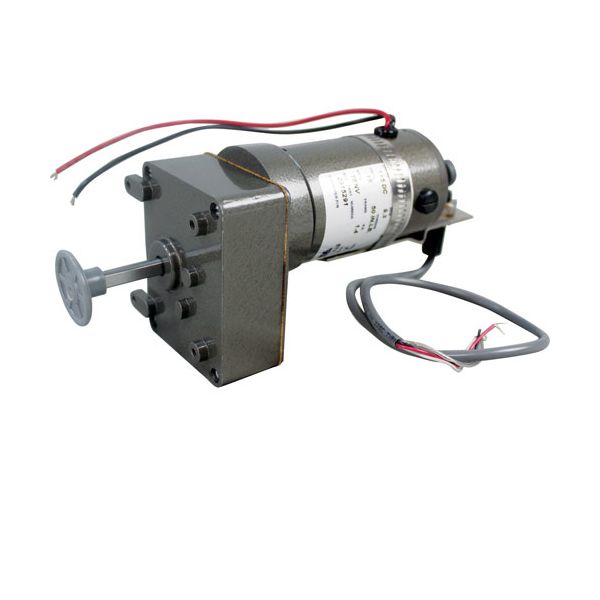

Star Mfg 2U-51067 Drive Motor Assembly
Special Price $301.68 Regular Price $481.14
In stock
SKU
2U-51067
Manufacturer:
The Star Mfg 2U-51067 Drive Motor Assembly is an electric drive unit, is used to drive the mechanical portion of commercial foodservice equipment, by converting an electrical signal into a rotary motion conveyor, mixer or rotating part. It is installed in the mechanical compartment of the equipment, and is connected to the wiring harness and drive linkage. This assembly connects with gears or belts to provide controlled movement with given speeds. It provides the torque needed to drive the components and maintain uniform operation, and synchronized action of appliances.
Dimensions
- Length: 12.5 In
- Width: 6 In
- Height: 6 In
- Weight: 4.42 lbs
Product Notes
- Gear Motor,
- 115Vdc, 9.3 RPM, .15A. 50" Lbs. Torque
- Power Leads, 18 Gauge (1) Red, 8"
- (1) Black, 8"
- Magnetic Pick-Up Harness, 30" W/ Red, White, Black And
- Ground Wires. Threaded End W/Palnut 1/2"-13 X 1-3/4".
- Num2315291
- Middleby Conveyor Oven: Ps520G, Ps536Gs
