True E800402 Shaded Pole Fan Motor W/Shaft Threaded CW 1550 RPM 0.55A 9W 115V 50/60Hz
Special Price $227.15 Regular Price $350.00
In stock
SKU
E800402
Manufacturer:

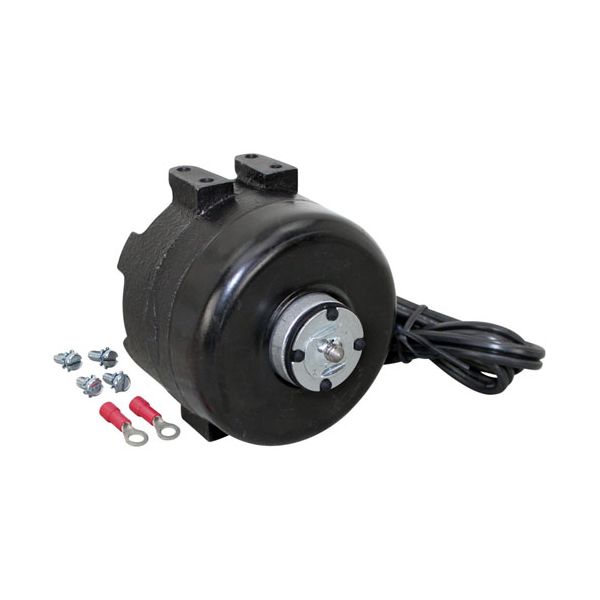

The True E800402 Shaded Pole Fan Motor generates rotational movement from electrical power to turn the connected fan assembly. Its threaded shaft rotates clockwise at 1550 RPM, transmitting motion directly to the attached fan. The motor is mounted in the designated fan compartment of compatible equipment, with the threaded shaft aligned with the fan connection. It operates from an 115V supply at 50/60 Hz, with a current rating of 0.55 A and a power rating of 9 W. The clockwise rotation determines the operating direction of the connected fan while the motor remains fixed within its mounting position.
Dimensions
- Length: 4.375 In
- Width: 4.375 In
- Height: 3.75 In
- Weight: 3.26 lbs
Product Notes
- Fan Motor, 115V, 9W, .55Amp, 50/60Hz
- 1550 RPM, Cw,
- Shaded Pole, Cast Iron,
- Shaft Threaded 1/4"-20 X 1/2"
- True Gdm-12F, Gdm-33, Gdm-47,
- T Series, T-23, T-23-2, T-23F,
- T-24-Gc, T-35, T-36-Gc, T-49, T-49F, Tbb-24-48, Tbb-4,
- Td-24-7, Td-50-18, Ts23, Tssu 36-12Mb, Tssu 48-18Mb, Tssu
- Series, Tssu-48, Tssu-48-8-47, Tuc-48, Tuc-60, Tuc-67D-2,
- Tuc27F, Twt Series, Twt-48, Twt-60, Twt-67F, Twtf Series
