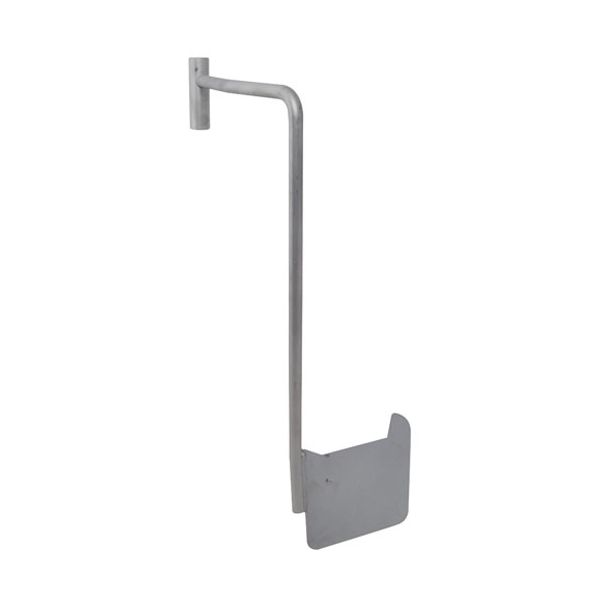

Frymaster FM8236710 Gas Fryer Basket Lift Arm Left
Special Price $293.00 Regular Price $297.16
In stock
SKU
FM8236710
Manufacturer:
The Frymaster FM8236710 Basket Lift Arm connects to the part lift mechanism and raises or lowers the gas fryer hopper during the cooking cycle through coordinated movement with the lift assembly. It supports the basket in a fixed position while transferring motion from the lift system for controlled operation. This part is fitted on the left side of compatible gas fryers as part of the automatic basket lift assembly. Its metal construction and shaped arm design match the required fit for basket handling during routine frying operations.
Dimensions
- Length: 18.75 In
- Width: 10 In
- Height: 5.75 In
- Weight: 2.374 lbs
Product Notes
- Material: Stainless Steel
- Length: 18 3/8" | 467 mm
- Width: 9" | 229 mm
- Inner Diameter: 5/8" | 16 mm
- Outer Diameter: 7/8" | 22 mm | 9/16" Bar | 14 mm Bar
- Depth: 5" | 127 mm
