Component Hardware Group G27-1250 Loop Burner 14-3/4" X 3-1/4"
Special Price $36.08 Regular Price $36.82
In stock
SKU
G27-1250
Manufacturer:

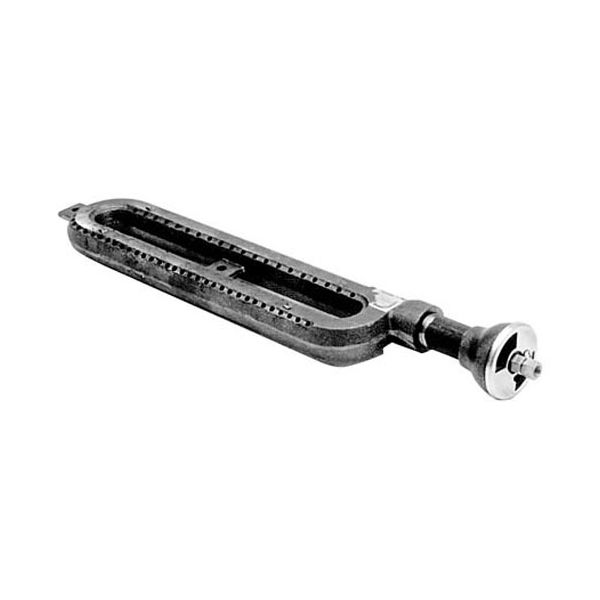

The Component Hardware Group G27-1250 Loop Burner 14-3/4 x 3-1/4 is a bent metal tube, which enables gas to pass through its continuous loop configuration, forming a series of burner ports all the way along its length where the fuel and air mix and ignite. The burner spreads flame evenly over the provided span when attached and connected to the gas supply, as gas passes through the ports and burns. This loop burner is installed in the cooking cavity of any compatible commercial range or grill. Its size is in line with the allocated burner areas and the mounting ends.
Dimensions
- Length: 14.75 In
- Width: 4 In
- Height: 3 In
- Weight: 5.88 lbs
Product Notes
- Cast Iron Loop Burner, Nat/Lp
- 14-3/4" X 3-1/4" (Air Mixing Chamber Head Addl. 3-3/4")
- 30,000 Btu
- ( Inlet Orifice - Thd 1/8" Npt
- Includes:
- Air Shutter Only - # 26-1589
- Air Mixing Chamber W/Air Shutter # 24-1065
- Orifice - # 26-1224 #55 Nat
- Orifice - # 26-1225 #71 Lp
