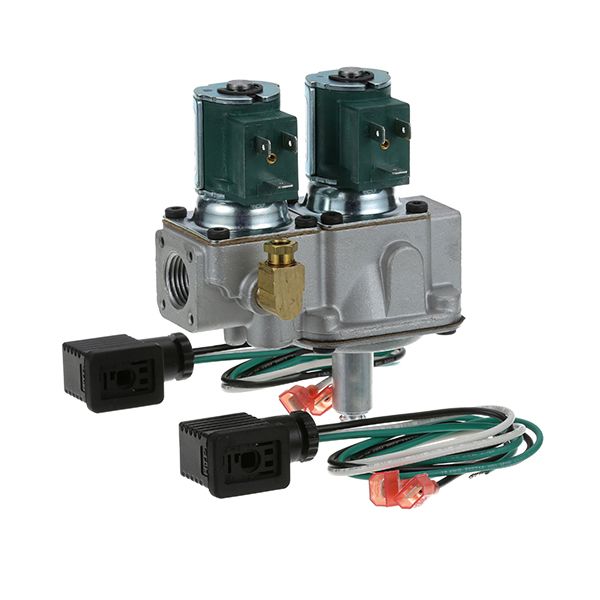

Johnson Controls G96HGH-5 Dual Gas Solenoid Valve 1/2" 25V

Be the first to review this product
Special Price $237.78 Regular Price $512.46
In stock
SKU
G96HGH-5
Add to Wish List
Griddle & Grill Parts, Gas Solenoid Valves, Shop by manufacturers
Manufacturer:
The Johnson Controls G96HGH-5 Dual Gas Solenoid Valve 1/2" 25V is designed to control the movement of gas in the controlled heating systems. It works based on dual solenoid systems that open or close the inner ports of the valves when a 25-volt signal is applied to it, and then the fuel supply is controlled accurately. This is a valve fitted in the gas line where precise control of flow is required to allow proper operation of the burner. It is an essential component of the fuel control system.

Dimensions

  • Length: 6 In
  • Width: 4.5 In
  • Height: 5 In
  • Weight: 1.49 lbs
https://partsfe.com/media/catalog/product/j/o/johnson-controls-g96hgh-5-1-2-fpt-dual-solenoid-gas-valve-25v-250000-btu-22006-2.jpg

Product Notes

  • Dual Solenoid Valve
  • [ Nat Gas ] [ 1/2" Fpt Gas In/Out ] [ Nc ] [ 25 V ]
  • [ Width 4-1/8" ] [ 250,000 Btu ] [ 1/4" Cct Pilot Out ]
  • [ Brand Baso ] [ Mfg# G96Hgh-5 ] ,
  • Nat To Lp Conversion Kit A3474, C-441, # 51-1059
  • Lp To Nat Conversion Kit A3475, C-440, # 51-1060
  • Cleveland ?
  • Garland Oven Mco-G-5. Series: Bco, Eco, Ico, Tg, Ttg.
  • Us Range Oven Sdg (1,2)
JOHNSON CONTROLS:
Reviews
Write Your Own Review
You're reviewing:Johnson Controls G96HGH-5 Dual Gas Solenoid Valve 1/2" 25V
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Johnson Controls G96HGH-5 Dual Solenoid Gas Valve?

Regularly inspect the valve for gas leaks, secure electrical connections, and proper coil operation. Keep the unit clean and free from grease, dust, or debris that may affect solenoid movement. Check inlet screens for blockage and ensure stable voltage supply. Replace seals or coils if irregular operation or sticking is observed.

What are common issues with the Johnson Controls G96HGH-5 Dual Solenoid Gas Valve?

  • Solenoid coil failure preventing valve opening.
  • Gas leakage from worn seals or fittings.
  • Valve sticking or delayed response.
  • Blocked inlet screen reducing gas flow.
  • Electrical connection faults or voltage drop.
  • Overheating during continuous operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off electrical power and close the gas supply valve before servicing the equipment.

Step2: Label and disconnect all wiring, then remove the old gas valve from the gas line.

Step3: Apply approved gas-rated thread sealant to the pipe threads and install the new valve in the correct flow direction.

Step4: Reconnect the wiring terminals according to the equipment diagram.

Step5: Restore the gas supply and check all fittings for leaks using a soap-and-water solution.

Step6: Turn power back on and test ignition and gas valve operation to ensure safe performance.
