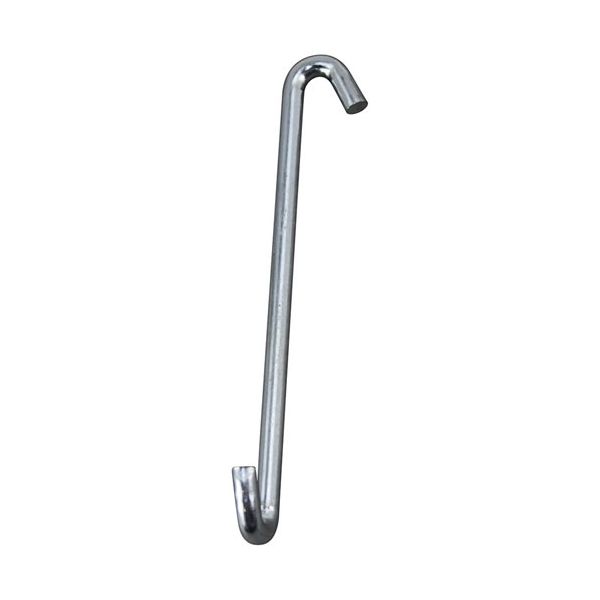

Garland GL1082803 Oven Crank Hook W/Bottom Hook Up 4-3/8" Bell

Be the first to review this product
Special Price $13.72 Regular Price $17.14
In stock
SKU
GL1082803
Add to Wish List
Other Categories, Additional Parts, Hooks
Manufacturer:
The Garland GL1082803 Crank Hook W/Bottom Hook Up 4-3/8" Bell is used to control the movement of the oven door by attaching to the internal mechanism. The dual hook design of the same enables the bottom hook to be attached to the frame of the oven and the top crank hook to be connected to the moving components so that it can be used smoothly when opening and closing. This part will be installed at the specified hook-up points in the oven assembly and will fit into the existing structure without any alteration.

Dimensions

  • Length: 4 In
  • Width: 0.5 In
  • Height: 4 In
  • Weight: 0.05 lbs
https://partsfe.com/media/catalog/product/g/a/garland-gl1082803-4-3-8-bell-crank-hook-for-ovens-w-hook-up-at-bottom-15597-2.jpg

Product Notes

  • Bell Crank Hook, Left
  • With Hook Up At Bottom The Top Hook Turns Right, 4-3/8"
  • Long,
  • Garland
  • Oven 680-2, 684, 686, Stw28, Stw286.
  • Series: 40/50, G30A, G280, R280-Ir, S.
  • Us Range Oven Px-36G-2-20
Reviews
Write Your Own Review
You're reviewing:Garland GL1082803 Oven Crank Hook W/Bottom Hook Up 4-3/8" Bell
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Ensure the appliance is turned off and completely cool before starting.

Step2: Remove the access panel to reach the door hinge or bell crank assembly.

Step3: Disconnect and remove the existing bell crank hook from the linkage.

Step4: Position the new bell crank hook in the correct orientation.

Step5: Secure the hook to the bell crank and hinge linkage, ensuring smooth movement.

Step6: Reassemble the access panel and test the door for proper opening and closing.
