Genuine OEM Part

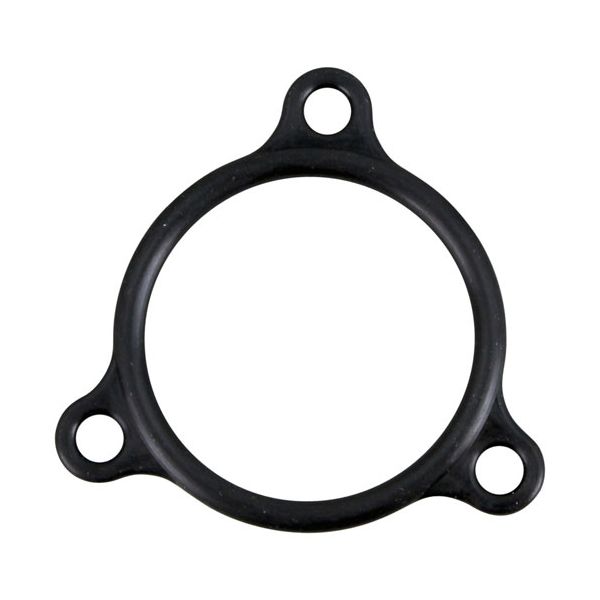

main product photo

Champion 109985 Dishwasher Heater O-Ring Seal

Rating:
5 5 1
1  Review Add Your Review
$16.98
In stock
SKU
109985
Add to Wish List
Other Categories, Additional Parts, Heaters
Manufacturer:
The Champion 109985 Dishwasher Heater O-Ring Seal is a close cover that encloses the assembly to prevent water from escaping to the other parts of the assembly. It operates by the compression between mating surfaces in the presence of sealing gaps, preventing fluid flow. This is mounted at the interface of the mounting in compatible dishwasher units. It is shaped to fit into the required groove on the housing with the required diameter and cross-section dimensions. The elastomer material enables the seal to compress and ensure that it is in contact with the adjoining parts when it is operating normally.

Dimensions

  • Length: 3.25 In
  • Width: 4 In
  • Height: 0.375 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/c/h/champion-109985-electric-heater-flange-seal-gasket-20958-2.jpg

Product Notes

  • Electric Heater Flange Seal Gasket
  • Champion 1000 Series Ht, 1000 Series Lt, 100Hdpw, 106Pw,
  • 108Hdpw, 110Ffpw, 120Hdpw, 44, 44Dr, 44Drws,
  • 44Lt, 44Ws, 54,
  • 64, 66Drpw, 66Drwspw, 66Lt, 66Pw, 66Pwws, 70Ffpw, 72, 76Pw,
  • 80Drwshdpw, 80Ffpw, 80Hdpw, 84, 86Pw, 90Ffpw, 90Hdpw,
  • 94Ffpw, 94Pw, D-H1Tcm5, D-H1Tm5, D-Hb, D-Hbm3, D-Hbm4,
  • D-Hbm5, D-Hbt, D-Hbtcm4, D-Hbtcm5, D-Hbtm4, D-Hbtm5,
  • Dh-1000, Idh-200, Tuw, U-Bw, U-H1, U-Hb, Uc-C, Uc-Cw,
  • Uh-100B, Uh-150B, Uh-170, Uh-170B, Uh-200B, Usn-10, Utl
More Information
Disable SaleableNo
Replaces Parts
CHAMPION:
109985, CHA109985
Reviews 1
Write Your Own Review
You're reviewing:Champion 109985 Dishwasher Heater O-Ring Seal
Your Rating
FAQS
Customer Questions
What maintenance is required for the Champion 109985 Flange Seal Gasket?

Regularly inspect the gasket for cracks, wear, or deformation that could cause leaks. Clean any debris or residue around the flange to ensure a proper seal. Replace the gasket immediately if damage is found to maintain safety and heating efficiency. Avoid overtightening bolts during installation.

What are common issues with the Champion 109985 Flange Seal Gasket?

  • Leaks around the flange.
  • Gasket cracking or breaking under heat.
  • Improper sealing due to misalignment.
  • Deformation from overtightening or repeated use.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the power and allow the appliance to cool completely.

Step2: Drain any remaining water and open the access area to the heater flange.

Step3: Remove the old gasket and clean the sealing surfaces thoroughly.

Step4: Place the new gasket evenly onto the flange and reassemble components.

Step5: Restore power, refill the unit, and check carefully for leaks.
