Genuine OEM Part
main product photo

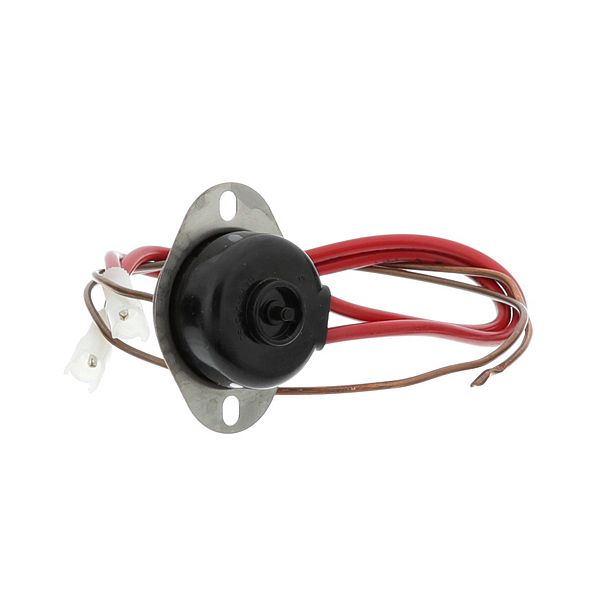

Hobart 00-271123 Dishwasher Hi-Limit thermostat-O-Disc W/ 18" Copper Sensor Probe 9-1/2" Red Wire Leads & Shielded Pin Connectors

Rating:
5 5 1
1  Review Add Your Review
$209.36
In stock
SKU
00-271123
Add to Wish List
Fryer Parts, High Limit Switches,
Manufacturer:
The Hobart 00-271123 Hi-Limit thermostat-O-Disc W/ 18" Copper Sensor Probe 9-1/2" Red Wire Leads & Shielded Pin Connectors is a temperature-limiting control device that monitors water or chamber heat levels and interrupts the electrical circuit when‌ a preset maximum temperature is exc‌eeded. It operates through a sensing probe that detects thermal changes and trigger the disc‍ mechanism to op‍en or clos‌e contacts regulating po‌w‌er flow within the dishwasher’s heating system during wash and rinse cycles. It has commercial dishwashers or hea‍ter assemblies, positioned with the sensor probe inserted into the wash chamber and the control body mounted within the electrical compartment‌ of the unit.‌

Dimensions

  • Length: 5.25 In
  • Width: 3.75 In
  • Height: 2 In
  • Weight: 0.11 lbs
https://partsfe.com/media/catalog/product/h/o/hobart-00-271123-dishwasher-hi-limit-thermostat-o-disc-w-18-copper-sensor-probe-9-1-2-red-wire-leads-shielded-pin-connectors-72065-2.jpg

Product Notes

  • Hi-Limit, Therm-O-Disc, 290 F, 1.653" Mt Ctrs,
  • 9 1/2" Red Wire Leads W/ Shielded Pin Connectors,
  • 18" Copper Sensor Probe
  • Hobart Dishwasher

This high-limit thermostat is a safety part used in commercial dishwashers to help control and protect against very high temperatures. It is installed in the heating and wash system and works by checking the heat level using an 18-inch copper sensor probe. If the temperature reaches about 290°F, it automatically shuts off or reduces heating to prevent overheating and damage to the machine. It is commonly used in Hobart commercial dishwashers found in restaurants, hotels, and large kitchens where equipment runs many wash cycles every day. Built with insulated wire leads and secure connectors, it fits directly into the control system for stable operation. If the thermostat becomes worn or fails, it can cause overheating or cycle problems, so replacing it helps restore safe temperature control and keeps the dishwasher running properly and efficiently.

Equipment Compatibility:
Typical uses for the Hobart high-limit thermostat include dishwasher safety systems, wash tank heating protection, and overheating control parts. This Therm-O-Disc thermostat 00-271123 is compatible with equipment from brands such as Hobart and Vulcan Hart, and others, where safe temperature control is needed for proper operation.

Brand Compatibility:
This thermostat replaces different part numbers used in equipment from brands like Hobart and Vulcan Hart, and more. Full cross-reference details are given separately for easy identification and ordering.

Product Specifications:
Product Type: High-Limit Dishwasher Thermostat (Therm-O-Disc)
Manufacturer: Hobart
SKU: 00-271123
Temperature Rating: 290°F high-limit cutoff
Sensor Probe: 18-inch copper sensing probe
Electrical Leads: 9.5-inch red insulated wire leads
Connector Type: Shielded pin connectors
Mounting Specification: 1.653-inch mount centers
Function: Stops overheating by shutting off or controlling high temperatures
Application: Commercial dishwasher heating and wash tank safety system

Key Features:

  • Helps protect dishwashers from getting too hot and causing damage
  • Uses a copper probe to accurately sense temperature changes
  • Supports safe and steady operation during washing cycles
  • Made to directly replace old or faulty thermostats in compatible machines
  • Helps restore proper temperature control for safe dishwasher performance

Users commonly report improved dishwasher safety and more consistent wash cycles after replacement installation.

Replaces Parts
HOBART:
00-271123, 271123, HOB00-271123, HOB271123
VULCAN HART:
Reviews 1
Write Your Own Review
You're reviewing:Hobart 00-271123 Dishwasher Hi-Limit thermostat-O-Disc W/ 18" Copper Sensor Probe 9-1/2" Red Wire Leads & Shielded Pin Connectors
Your Rating
FAQS
Customer Questions
What maintenance is required for the Hobart 00-271123 Hi-Limit Thermostat?

Regularly inspect thermostat contacts and sensor probe for corrosion or damage. Clean connectors and ensure tight wiring to prevent faulty readings. Verify proper placement of probe. Routine checks ensure accurate high-limit protection and safe dishwasher operation.

What are common issues with the Hobart 00-271123 Hi-Limit Thermostat?

  • Inaccurate temperature cutoff triggering too early or late.
  • Sensor probe damage or scaling affecting readings.
  • Loose or corroded wire connections causing intermittent faults.
  • Thermostat failure leading to no heat cut-off or false tripping.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect dishwasher power and water supply for safety, and ensure system is cool.

Step2: Remove access panel to reach thermostat assembly area.

Step3: Detach old hi-limit thermostat and carefully note wiring positions.

Step4: Install new thermostat and secure sensor probe in original mount, ensuring firm contact.

Step5: Reconnect red wire leads to matching terminals securely.

Step6: Reassemble panel and restore power, testing operation carefully.
