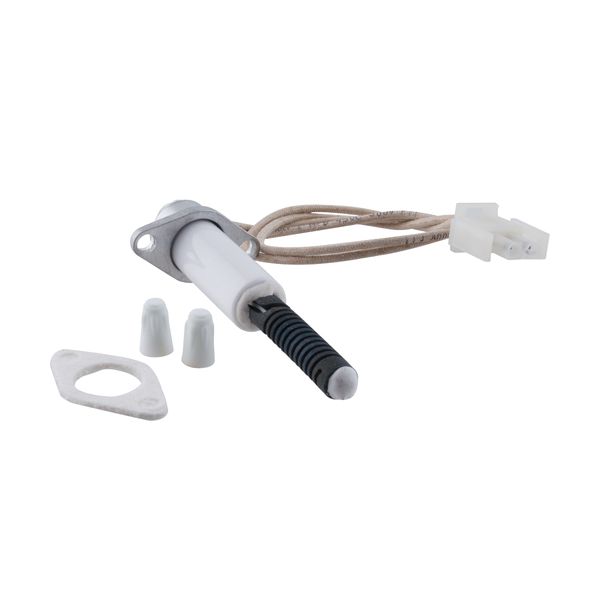

Rheem RHMSP-12143 Ignitor Hot Surface 120V
$250.10
In stock
SKU
RHMSP-12143
Manufacturer:
The Rheem RHMSP-12143 Hot Surface Ignitor works by using a ceramic heating element that heats up when electrical current is applied raising its temperature until it is hot enough to ignite gas in a burner system. As 120V power flows through the ignitor electrical resistance causes the element to glow at a high temperature creating the ignition source needed for burner startup. It also works as part of the flame initiation sequence within gas-fired heating equipment. It is installed in heating appliances, typically positioned near the burner assembly where direct ignition of the gas-air mixture is required.
Dimensions
- Length: 7.75 In
- Width: 3.5 In
- Height: 2.25 In
- Weight: 0.283 lbs
Product Notes
- Material: Ceramic
- Length: 3 1/4" | 83 mm
- Voltage: 120 V Ac
- Outer Diameter: 3/8" | 10 mm
- Includes: Gasket And (2) Wire Nuts
- Type: 12" Wire Leads, Female Pin Connectors
