Imperial 1273 Jet Burner 23-Tip 9" DIA CI
Special Price $84.37 Regular Price $136.83
In stock
SKU
1273
Manufacturer:

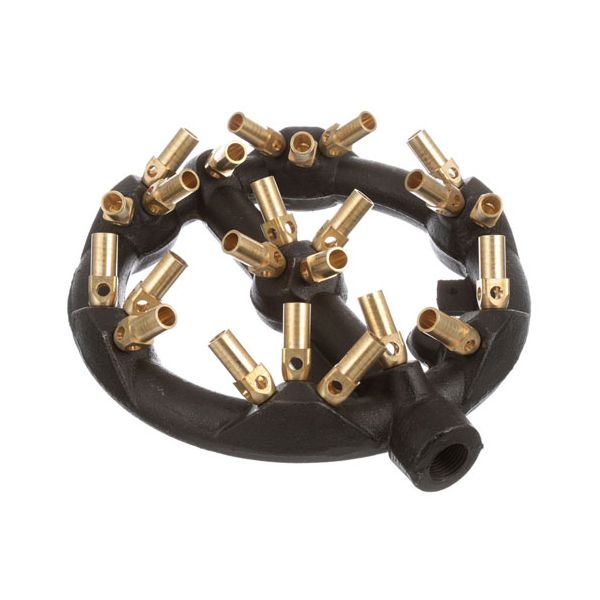

The Imperial 1273 Jet Burner 23-Tip 9" DIA is a cast iron gas burner used in commercial cooking equipment to produce high-output open flame heat for cooking surfaces. It features a 9" diameter body with 23 brass jet ports that distribute gas evenly to create a controlled multi-point flame pattern across the burner head. The unit connects through a 1/2" FPT inlet and operates as part of the main burner assembly in heavy-duty cooking appliances used in restaurants and commercial kitchens. Its role within the system is to generate and sustain direct combustion heat for grilling, and high-temperature cooking applications.
Dimensions
- Length: 9.5 In
- Width: 9 In
- Height: 3.5 In
- Weight: 7.1 lbs
Product Notes
- Cast Iron 9" Dia Jet Burner, Lp W/ 23 Brass Jets
- 1/2" Fpt Inlet, ( No Longer Comes W/Pilot.)
- 100,000 Btu
- Lp Jet # 26-1870
- Nat Jet # 26-1869
- Imperial
- Range Series: Icra, Isp-J.
- Rankin-Delux
- Range Series: Or Oriental Wok Range.
