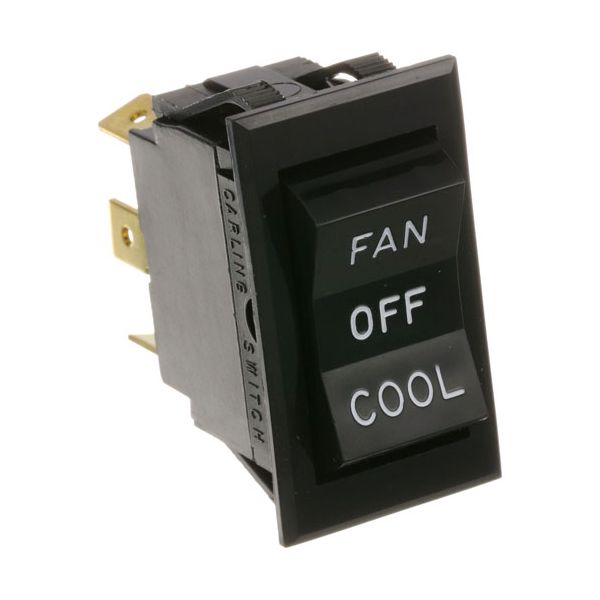

main product photo

Montague MON1305-6 DPDT Black Rocker Switch W/ 6 Terminals, On/Off/On, 20A/125V/277V

Be the first to review this product
Special Price $30.14 Regular Price $61.51
In stock
SKU
MON1305-6
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
Switch 7/8 X 1-1/2 Dpdt Ctr-Off

Dimensions

  • Length: 1.7 In
  • Width: 0.9 In
  • Height: 2 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/m/o/montague-mon1305-6-dpdt-black-rocker-switch-w-6-terminals-on-off-on-20a-125v-277v-47515.jpg

Product Notes

  • [ Black Rocker Switch ] [ Fits Hole 7/8" X 1-1/2" ]
  • [ On/Off/On ] [ Dpdt(Ctr-Off) ] [ Terminals 6 (1/4'
  • Tabs) ] [ Amp/Volts 20A/125V/277V ] [ Color Black ]
  • [ Markings "Fan/Off/Cool" ]
  • Montague
  • Oven Vectaire: 115(A,S,X,Z), Se70, Se115~
  • 115Aei W/Elec
  • Ignition~
  • Series: V136, Vg26, Grizzly G.
Reviews
Write Your Own Review
You're reviewing:Montague MON1305-6 DPDT Black Rocker Switch W/ 6 Terminals, On/Off/On, 20A/125V/277V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Montague MON1305-6 Black Rocker Switch W/ 6 Terminals?

Inspect the switch regularly for loose terminals and signs of overheating or wear. Keep the housing free from dust and moisture to prevent contact issues. Ensure wiring remains tight and properly insulated. Replace the switch if mechanical resistance or inconsistent toggling occurs.

What are common issues with the Montague MON1305-6 Black Rocker Switch W/ 6 Terminals?

  • Loose or burnt terminals causing intermittent contact.
  • Rocker mechanism sticking or failing to toggle.
  • Electrical arcing under load.
  • Overheating from excessive current draw.
  • Internal contact wear leading to inconsistent switching.
  • Poor connection due to wiring fatigue.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off main power supply and verify circuit is de-energized with a tester.

Step2: Mount switch into panel cutout ensuring correct orientation and secure fit.

Step3: Connect wiring to 6 terminals following DPDT wiring diagram carefully.

Step4: Tighten terminal screws firmly to ensure solid electrical contact.

Step5: Restore power and test on/off/on switching for proper operations.

Step6: Ensure all connections are insulated to prevent short circuits or electric shock.
