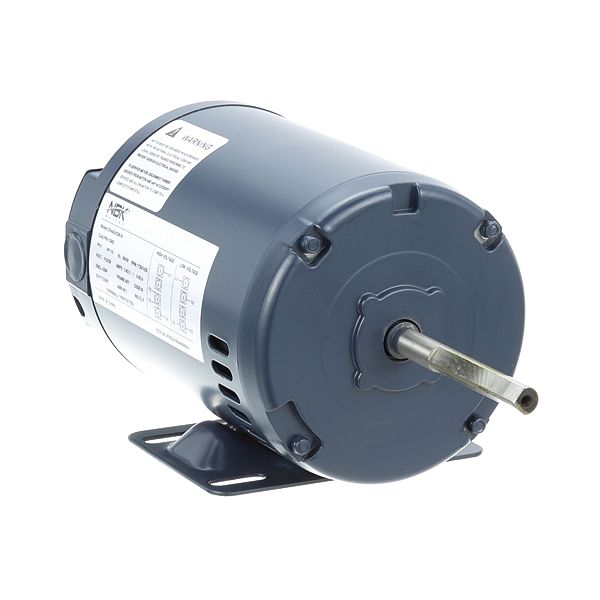

Lang LG30200-12 Convection Oven Motor
Special Price $963.47 Regular Price $1,942.87
In stock
SKU
LG30200-12
Manufacturer:
The Lang LG30200-12 Convection Oven Motor rotates the internal blower or convection fan by changing electrical power into rotational power when it is in use. It is attached to the fan housing and connected to the fan blade which moves the air through the cooking cavity, when the oven is operating. The motor is placed inside the rear or side panel, where the fan assembly is. It fits on the models and has standard mounting flanges and electrical connections, that fit into the existing wiring and housing.
Dimensions
- Length: 6 In
- Width: 6 In
- Height: 12.5 In
- Weight: 16.65 lbs
Product Notes
- 1/3 Hp, 115/230V, 5.2-6.2 Amp, 50/60 Hz, 1 Ph, 1725 RPM,
- 4" X 1/2" Shaft, N48Y Frame, 5-3/4" X 3-1/2" Mtg. Plate
- Lang Blower Wheel, # 26-3467 (8-1/2" Dia)
- Lang Oven Eco,Gco,Ehs Blower Wheel # 26-2931 ( 10 3/4"Dia)
- Lang/Star Oven Ecco-A, Ecco-C (With S/N Up To G71021, Prefix
- X~
- Mrs Fields With S/N X85095 To X90435), Ecco-C5S,
- Ecco-C5S-Cs (Mrs Fields & Schlotskys), Ecco-Lmbr
- (Cinnabon With S/N Prefix X), Ecco-S, Ecco-Sii (With
- S/N E67664 To F90435), Ecco-T (Before S/N F90435),
- Ehs-C (Including Braums), Ehs-(C-Lmbr,C1-1208Bk,
- Cir,Cir-Bk), Ehs-S (Including Tcby), Ehs-T, F-11S
- (With S/N A22107 To A22196 & Beg W/A23030), F-11Sm,
- Gpo, Ppp-(1,2,3). Series: F-6.
- Range Rf21S, Rf21S-(M,Xlh), Rf42S, Rf42S-(M,Xlh), Scr-30,
- Tcr-30.
