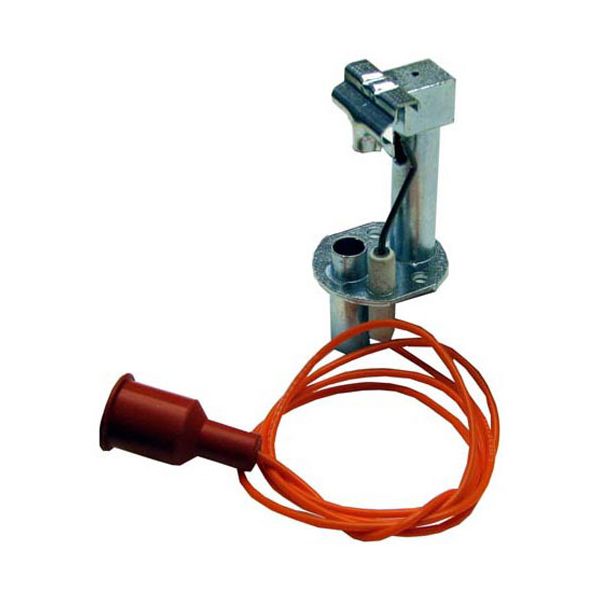

Lang 80201-14 Oven Pilot Assembly
Special Price $191.22 Regular Price $294.64
Out of stock
SKU
80201-14
Manufacturer:
The Lang 80201-14 Oven Pilot Assembly is a pilot assembly designed for compatible commercial gas oven equipment. It is installed within the burner ignition system where the pilot produces the initial flame required to ignite the main burner. The assembly connects with the gas supply and ignition controls to manage pilot fuel flow and establish the ignition source. Once the pilot flame is established it provides the heat needed for main burner ignition when the control system calls for heating. The assembly supports the ignition sequence and coordinated burner operation within the oven's gas system.
Dimensions
- Length: 4.375 In
- Width: 3 In
- Height: 2 In
- Weight: 0.3 lbs
Product Notes
- Pilot, Factory # J989Ftw, Tube Size 1/4" Cct,
- Flame Pattern , W/ Igniter And Wire
- 1-1/8" Wide Tip, No Orifice Or Sensor, 29" Wire/Spark
- Plug Boot End,
- Nat. Orifice Not Included.
- Lang Oem # 8041-10 .Size .018" X 1/4" Cct
- Suggest Nat Orifice, .021" X 1/4" Cct # 26-1675
- Lang
- Oven Gcco-(A,Ap,Ap-Xd,C,Prsn-Pk,S,Sii,T,T-Xd).
- Gcco-Ap, Gcco-C, Gcco-Pp, Gcco-Pt, Gcco-Sii, Gcco-T
