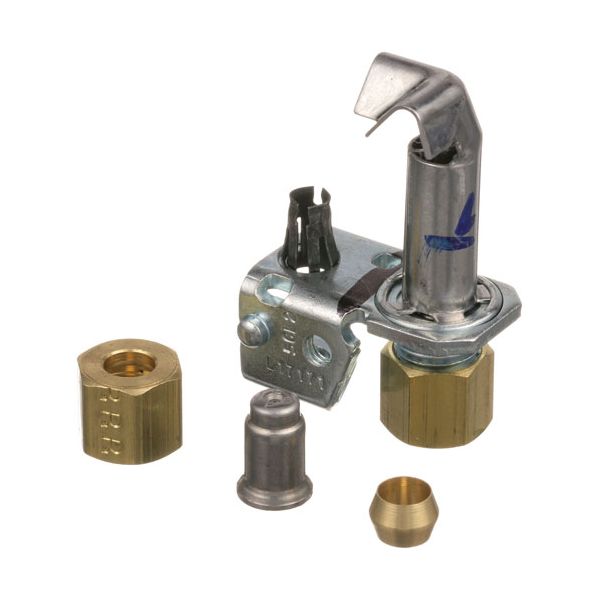

American Range A11124 Infrared Broiler Pilot Assembly W/Left Flame Pattern 3/16"-1/4" CCT NAT/LP

Rating:
5 5 1
1  Review Add Your Review
Special Price $32.63 Regular Price $37.00
In stock
SKU
A11124
Add to Wish List
Griddle & Grill Parts, Pilot Assembly,
Manufacturer:
The American Range A11124 Infrared Broiler Pilot Assembly is a left-flame design that is compatible with both natural gas and liquid propane designs and has a connection compatibility of 3/16" to 1/4" CCT. It operates by keeping a steady pilot flame that can be depended on to start the burners of the broilers. The pilot assembly is usually used in restaurant and commercial kitchen settings, where it is directly connected to the gas system and the safety system. Its position in the appliance is vital in maintaining constant ignition, adequate heat start and regulated efficiency in the normal broiling process.

Dimensions

  • Length: 1.25 In
  • Width: 0.75 In
  • Height: 2 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a11124-nat-lp-pilot-assy-w-left-flame-pattern-3-16-1-4-cct-14501-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory #5Sl2, Tube Size 3/16"/1/4" Cct,
  • Flame Pattern Left
  • Picture Wrong On Pages 31, 475, And 645 Of 2010-2011 Hot
  • Side Catalog. Pilot Does Not Include Electrode And Wire,
  • But Otherwise Looks The Same.
  • If Electrode & Wire Is Needed, Order Pilot Assy
  • # 51-1214
  • Dynamic Cooking Systems
  • Broiler Cheesemelter, Salamander.
  • Imperial
  • Broiler Series: Icma Cheesemelter, Isb Salamander.
  • Oven Series: Ihr (Range W/Standard Oven).
AMERICAN RANGE:
DYNAMIC COOKING SYSTEMS:
IMPERIAL:
Reviews 1
Write Your Own Review
You're reviewing:American Range A11124 Infrared Broiler Pilot Assembly W/Left Flame Pattern 3/16"-1/4" CCT NAT/LP
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the American A11124 Pilot Assembly?

Inspect the pilot assembly regularly for carbon buildup or blockage. Clean orifices carefully with a soft brush to maintain Range flow. Ensure proper alignment and secure connections for safe ignition and stable flame.

What are common issues with the American A11124 Pilot Assembly?

  • Clogged pilot orifice causing weak or no flame.
  • Irregular or yellow flame due to gas imbalance.
  • Ignition failure from debris buildup or misalignment.
  • Gas leakage or loose fitting connections.
  • Inconsistent flame pattern affecting burner performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow unit to cool completely.

Step2: Remove access panels and disconnect old pilot assembly carefully.

Step3: Position new pilot assembly with left flame pattern aligned to burner.

Step4: Secure fittings and reconnect gas lines tightly.

Step5: Restore gas, check for leaks with soapy water, then test ignition.
