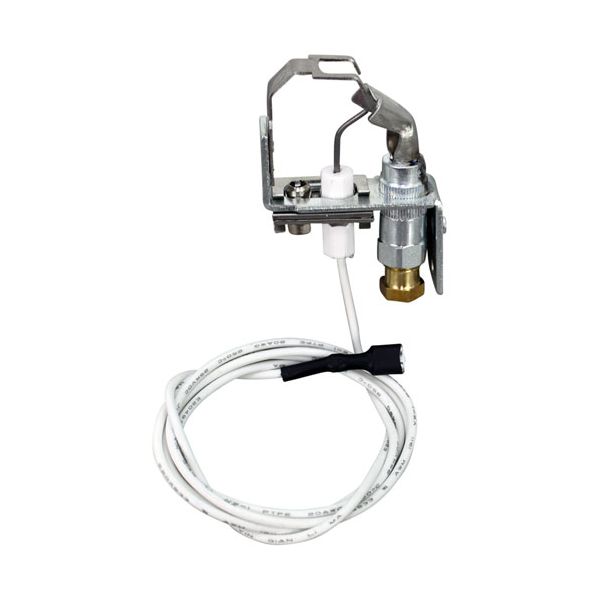

main product photo

Garland CK1935802 Natural Gas Pilot Assembly W/Adaptor 2-Wire Lead & Spade Terminals 36"

Be the first to review this product
Special Price $67.89 Regular Price $143.83
In stock
SKU
CK1935802
Add to Wish List
Griddle & Grill Parts, Pilot Assembly, Shop by manufacturers
Manufacturer:
The Garland CK1935802 Natural Gas Pilot Assembly is a flame controlled part that is used to start the main burner on equipment that is compatible with commercial cooking equipment. It is interconnected with the ignition and safety control system with a 36" two-wire lead having spade terminals on both ends. The pilot has a constant flame that warms or a flame sensor to ensure that there is a safe gas flow and the main burner is not turned on. This assembly is installed in the burner compartment and is essential for ignition consistency, flame stability, and heating performance in all commercial cooking.

Dimensions

  • Length: 2.75 In
  • Width: 1.75 In
  • Height: 0.75 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/g/a/garland-ck1935802-36-thermopile-w-adaptor-2-wire-lead-spade-terminals-23853-2.jpg

Product Notes

  • Nat Pilot, Factory # Honeywell Q34551B1004,
  • Tube Size 1/4",
  • Flame Pattern Standard, Igniter W/ 36-3/4" White Wire, (Was
  • Blue Wire).
  • Lp Orifice # 26-2044
  • Nat Orifice #26-2043
  • Garland Oven Model Mco
Reviews
Write Your Own Review
You're reviewing:Garland CK1935802 Natural Gas Pilot Assembly W/Adaptor 2-Wire Lead & Spade Terminals 36"
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland CK1935802 Pilot Assembly?

Regularly inspect the pilot assembly for dirt, grease, or carbon buildup around the burner and terminals. Check the wiring connections and spade terminals for secure attachment and signs of wear. Keep the gas pathway clear to maintain accurate ignition and stable flame performance.

What are common issues with the Garland CK1935802 Pilot Assembly?

  • Weak or inconsistent pilot flame.
  • Ignition failure due to loose wire connections.
  • Damaged spade terminals causing intermittent operation.
  • Gas flow blockage from debris buildup.
  • Pilot outage caused by faulty adaptor or lead wiring.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas supply and disconnect electrical power to the equipment before servicing.

Step2: Remove the burner access panel to reach the existing pilot assembly.

Step3: Label and disconnect the pilot tubing, thermocouple, and ignition wire carefully.

Step4: Remove mounting screws and take out the old pilot assembly from the burner bracket.

Step5: Install the new pilot assembly in the same orientation and secure it firmly.

Step6: Reconnect the gas line, thermocouple, and igniter wiring to the correct fittings.

Step7: Restore gas and power, then check all connections for leaks using a soap solution.
