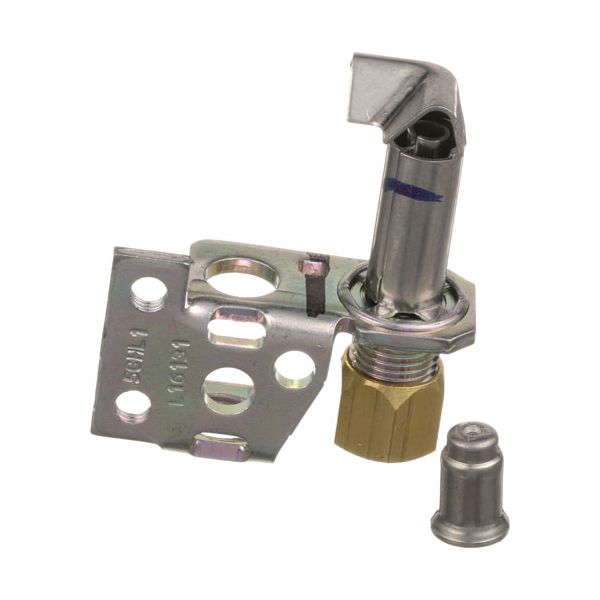

Jade Range 4613100100 Natural/LP Gas Pilot Burner 90 Degree Left Flame 1/4"Tube

Rating:
5 5 1
1  Review Add Your Review
Special Price $234.54 Regular Price $441.68
In stock
SKU
4613100100
Add to Wish List
Griddle & Grill Parts, Pilot Burners, Shop by manufacturers
Manufacturer:
The Jade Range 4613100100 Natural/LP Gas Pilot Burner is used in the commercial ovens especially those from the Stott Benham of United Kingdom. This 1/4” tube pilot burner gives 90 degree left flame which is very useful for the pilot ignition of natural and LP gases. Having LP orifice 26-1554 and natural gas orifice 26-1555, it provides accurate fuel rate for the most suitable burner operation. A perfect fit for improving the productivity and reliability of cooking appliances, this long-wearing part delivers stable flame and is easy to integrate into applications, making it an indispensable part of high-quality kitchen equipment.

Dimensions

  • Length: 2 In
  • Width: 3 In
  • Height: 3 In
  • Weight: 0.05 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4613100100-natural-lp-gas-pilot-burner-90-degree-left-flame-1-4-tube-88896-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 5Chl-1, 1830-031, Tube Size 1/4",
  • Flame Pattern 90 Degree Left,
  • Lp Orifice # 26-1554
  • Nat Orifice # 26-1555
  • Stott Benham Oven Model?
  • ( United Kingdom )
JADE RANGE:
Reviews 1
Write Your Own Review
You're reviewing:Jade Range 4613100100 Natural/LP Gas Pilot Burner 90 Degree Left Flame 1/4"Tube
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Jade Range 4613100100 Pilot Burner?

Clean the pilot burner and flame outlet regularly to prevent clogging. Inspect tube connections for leaks or corrosion. Maintain proper gas pressure and ensure correct flame orientation for accurate ignition and safe operation.

What are common issues with the Jade Range 4613100100 Pilot Burner?

  • Clogged pilot orifice.
  • Flame instability or blowout.
  • Incorrect flame direction.
  • Igniter failure.
  • Carbon buildup reducing efficiency.
  • Intermittent pilot outage.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply and allow system to cool before servicing.

Step2: Remove old pilot burner assembly carefully and disconnect power if applicable.

Step3: Inspect tube connection for debris or damage clean port area.

Step4: Position new pilot burner with left flame orientation ensure proper alignment.

Step5: Secure tube fitting tightly without over-torquing do not overtighten.

Step6: Reconnect gas and check for leaks using soapy water ensure no gas smell remains.
