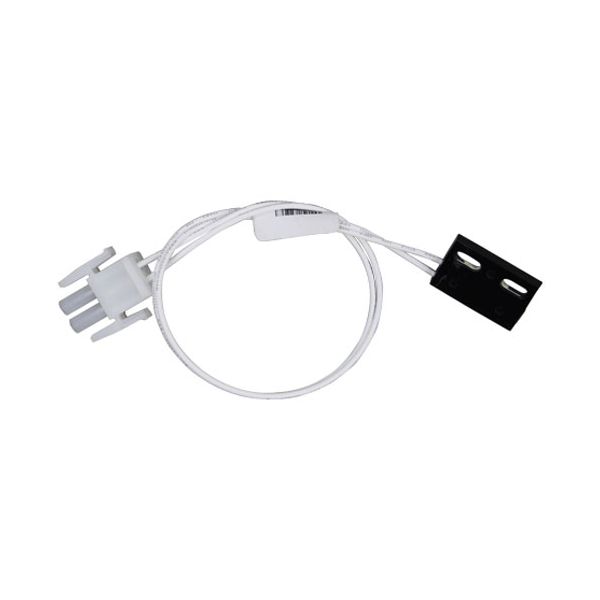

Pitco PTB5305001 Fryer Drain Valve Interlock Switch W/ Connector

Be the first to review this product
Special Price $121.49 Regular Price $234.00
In stock
SKU
PTB5305001
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Pitco PTB5305001 Fryer Drain Valve Interlock Switch is an essential safety mechanism . It uses a magnetic reed fitting to enable the fryer’s drain valve to open and close safely and effectively, without triggering a drain during the frying process. This change also improves safety by engaging with the fryer’s system so that the it cannot be drained while it is in operation. Advantages are the possibility of installation without additional tools, compatibility with more than 100 models , and higher reliability of frying equipment, which makes it an indispensable part for ensuring the safety and productivity of commercial kitchens.

Dimensions

  • Length: 6.5 In
  • Width: 4 In
  • Height: 1 In
  • Weight: 0 lbs
https://partsfe.com/media/catalog/product/p/i/pitco-ptb5305001-fryer-drain-valve-interlock-switch-w-connector-91571.jpg

Product Notes

  • Dvi Switch
  • Same As #42-1313 Except It Comes With The Connector
  • Pitco Fryer 4Ssh75Csfd, 5Ssh75Csfd, Fg-Sgh50-Fd-50-Bt-50-2,
  • Lj-Fbg18, Lj-Fbg24, Lj-Fbgd18, Lj-Fbgd24, Me2, Meii, Se14,
  • Se147, Se148X, Se14R, Se14T, Se14Tr, Se14Tx, Se14X, Se18,
  • Se18R, Se18S, Se714, Sebnb14, Sebnb18, Seh50, Sfse14,
  • Sfse14R, Sfse14T, Sfse14Tr, Sfse14Tx, Sfse14X, Sfse18,
  • Sfse18R, Sg14, Sg14Di, Sg14R, Sg14Rdi, Sg14Rs, Sg14S-D,
  • Sg14T, Sg14Tdi, Sg18, Sg18Di, Sg18F, Sg18S, Sg18S-D, Sgc,
  • Sgh50, Sgm1824, Sgm24, Sgm34, Sgsebnb-14, Sgsebnb-18, Ssh55,
  • Ssh60, Ssh75, Ssh75Rs
MAGIKITCH'N:
Reviews
Write Your Own Review
You're reviewing:Pitco PTB5305001 Fryer Drain Valve Interlock Switch W/ Connector
Your Rating
FAQS
Customer Questions
What maintenance is required for the Pitco PTB5305001 Drain Valve Interlock Switch?

Regularly inspect the interlock switch for secure mounting and proper alignment with the drain valve mechanism. Clean away grease and debris that may affect actuator movement or electrical contact. Check the connector and wiring for tightness, corrosion, or heat damage. Ensure the switch connects and disconnect smoothly during normal valve operation.

What are common issues with the Pitco PTB5305001 Drain Valve Interlock Switch?

  • Failure to detect the drain valve position.
  • Intermittent switch operation is causing unexpected shutdowns.
  • Damaged or loose connector leading to loss of interlock signals.
  • Misalignment between the reed switch and actuator is causing false readings.
  • Wire insulation damage is causing erratic electrical behaviour.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect fryer from power supply and allow it to cool completely before beginning any work to avoid electric shock or burns.

Step2: Open control panel and locate drain valve interlock switch assembly.

Step3: Remove faulty switch and disconnect wiring connector carefully.

Step4: Install new switch aligning mounting points and reconnect connector securely.

Step5: Restore panel, test drain valve interlock before full operation and verify safety interlock works correctly.
