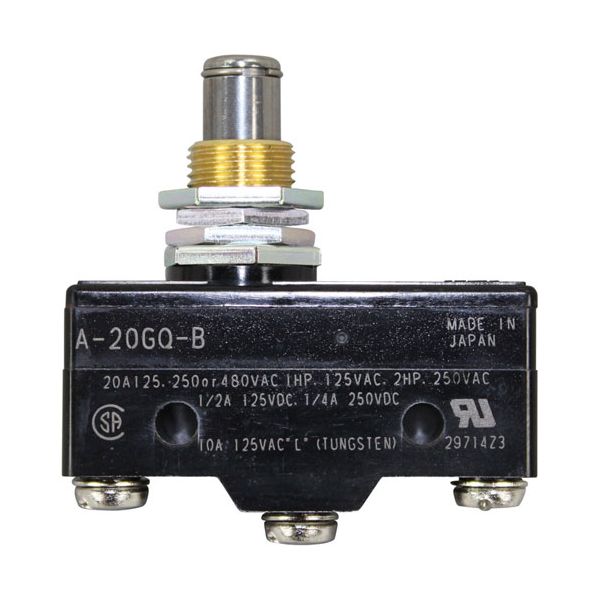

main product photo

Pitco PTP5047170 Fryer SPDT Micro Push Button Switch 20 AMP 125/250/480V

Be the first to review this product
Special Price $228.80 Regular Price $371.00
In stock
SKU
PTP5047170
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
Pitco PTP5047170 Fryer SPDT Micro Push Button Switch is a high quality, momentary on/off switch for heavy duty kitchen equipment. With high powered at 20 amps, and compatible with 125V, 250V and 480V this switch is versatile to be used in Fryers, Ovens and Steamers of brands like Anets, Bakers Pride, Vulcan etc. With its compact design, a 1 inch mounting hole center, it is easy to install and can be adapted to any setup. Micro push button mechanism ensures precise control, quick activation and deactivation of equipment is essential in fast paced kitchen environment.

Dimensions

  • Length: 2 In
  • Width: 0.7 In
  • Height: 2 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/p/i/pitco-ptp5047170-fryer-spdt-micro-push-button-switch-20-amp-125-250-480v-45969.jpg

Product Notes

  • Micro Push Button Momentary On/Off Switch, Spdt
  • 20 Amp, 125/250/480 Volt, Mount Hole Ctrs 1"
  • Anets Dough Roller Mdr-4, Mdr-6C.
  • Bakers Pride Oven Series: X300, X500, X700.
  • Beverage Air
  • Duke Convection Oven E101, 59-1Ev (1/2 Size)
  • Garland Oven G286Rc, Sdg-1 Series: Bco, Eco, Ico, Mco,
  • 40-50. After S/N 39369: Te, Tg, Tte, Ttg.
  • Imperial Oven Icv, Icvd, Icvg
  • Market Forge Skillet Series: 1500/ Oven Series: 2500, 2700.
  • Steamer 3500. Series: Cte(3005,3010,3015,3550).
  • Pitco Fryer Electric Units Ending W/Suffix "C", "Cs"
  • Or "S":E7, E12, E14, E18, E24, E34.
  • Us Range Oven Sdg-(1,2). Series: Cg.
  • Vulcan G30-0
ANETS:
BAKERS PRIDE:
BKPM1102A, M1102A
BEVERAGE AIR:
502-058, 502-058A, BEV502-058
DUKE:
153114, DUK153114
IMPERIAL:
1355, IMP1355
MARKET FORGE:
MERCO:
19378SP, MER19378SP
MIDDLEBY MARSHALL:
TRI-STAR:
Reviews
Write Your Own Review
You're reviewing:Pitco PTP5047170 Fryer SPDT Micro Push Button Switch 20 AMP 125/250/480V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Pitco PTP5047170 Push Button Switch?

Regularly inspect the fryer switch for smooth actuation and ensure it returns properly after being pressed. Clean surrounding areas to prevent grease or debris from affecting movement. Check electrical terminals for tightness and signs of overheating or corrosion. Replace the switch if response becomes inconsistent or actuation feels stiff.

What are common issues with the Pitco PTP5047170 Push Button Switch?

  • Failure to actuate or intermittent switching response.
  • Electrical arcing or contact wear leading to inaccurate operation.
  • Sticking button caused by grease or debris buildup.
  • Fryer loose wiring connections causing intermittent fryer control issues.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Power off fryer and disconnect electrical supply to prevent shock.

Step2: Remove control panel access cover carefully using proper tools.

Step3: Disconnect old micro push button switch, noting wiring positions for correct reinstallation.

Step4: Install replacement switch and securely reconnect terminals as labeled.

Step5: Restore power, test fryer operation, ensure switch responds correctly before use.

Step6: Verify all panels secured and ensure no exposed wiring; if malfunction occurs, disconnect immediately.
