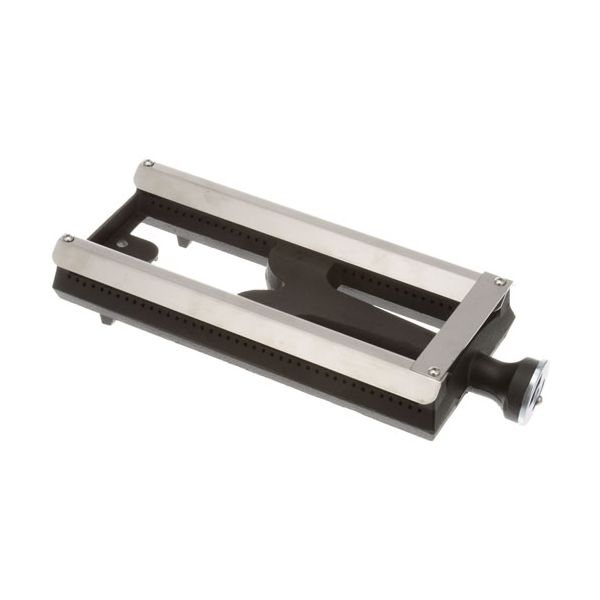

Rankin Delux RANRDLR-04 Broiler Cast Iron H Burner 16-1/4" X 6-3/4" W/ Cast Burner Cover

Rating:
5 5 1
1  Review Add Your Review
Special Price $143.83 Regular Price $221.62
In stock
SKU
RANRDLR-04
Add to Wish List
Griddle & Grill Parts, Gas Grill Burners,
Manufacturer:
The Rankin Delux RANRDLR-04 Broiler Cast Iron H Burner delivers consistent powerful heat distribution to broilers for efficient cooking operation. The durable cast iron burner has dimensions of 16-1/4" x 6-3/4" and it operates with American Range AECB, Imperial EBA series, and 2123, 2300, and 4223C broilers. The burner includes an air shutter component 26-2767 for exact airflow management together with an angled top weld for enhanced durability. The cast burner cover improves heat retention and efficiency of the system. The burner's superior quality enables reliable cooking performance which suits active food service environments perfectly.

Dimensions

  • Length: 16.25 In
  • Width: 6.75 In
  • Height: 3 In
  • Weight: 18.06 lbs
https://partsfe.com/media/catalog/product/r/a/rankin-delux-ranrdlr-04-broiler-cast-iron-h-burner-16-1-4-x-6-3-4-w-cast-burner-cover-71164.jpg

Product Notes

  • H Burner, Cast Iron
  • [ 16-1/4" X 6-3/4" ] Air Shutter # 26-2767,
  • Angle Welded On Top, 14" X 6-1/2" Less Venturi
  • Now Comes With Cast Burner Cover
  • American Range Broiler Aecb
  • Imperial Broiler Series: Eba.
  • Rankin-Delux Broiler 2123, Series: 2300, 4223C
AMERICAN RANGE:
-10475, -A14038, 10475, A14038
IMPERIAL:
-11350, 11350
RANDELL:
RANKIN DELUX:
-RDLR-04, -RDLR-4, RANRDLR-04, RANRDLR04, RDLR-04, RDLR-4, RDLR04
Reviews 1
Write Your Own Review
You're reviewing:Rankin Delux RANRDLR-04 Broiler Cast Iron H Burner 16-1/4" X 6-3/4" W/ Cast Burner Cover
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Rankin Delux RANRDLR-04 Burner?

Remove and clean the burner periodically to prevent grease accumulation and carbon blockage. Ensure flame openings remain clear. Inspect for warping or cracks due to heat exposure. Confirm secure installation of the burner to maintain balanced heat output and safe operation.

What are common issues with the Rankin Delux RANRDLR-04 Burner?

  • Flame instability during operation.
  • Reduced heat output performance.
  • Clogged burner ports affecting ignition.
  • Hot spots leading to uneven cooking performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply and electrical power, and ensure unit is cool before starting work.

Step2: Remove old burner assembly and clean mounting area and inspect manifold.

Step3: Align burner into broiler housing, ensuring proper alignment pins.

Step4: Secure cast burner cover and reconnect fittings, tighten all screws.

Step5: Turn on gas, check leaks with soapy water, test ignition flame carefully, and do not operate if leak is detected.
