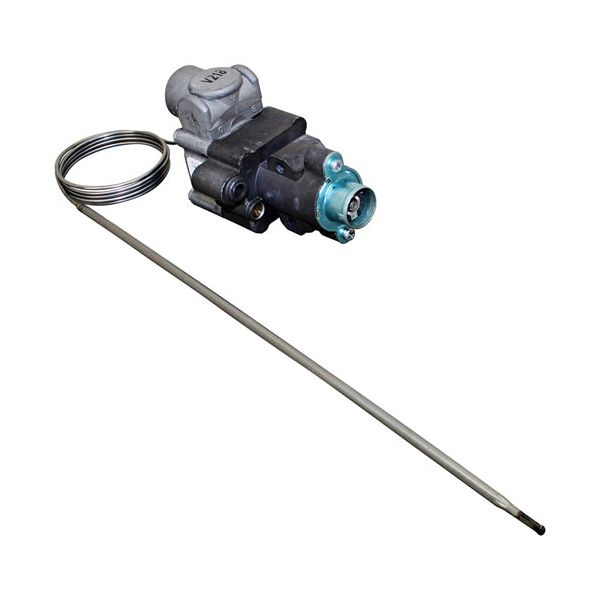

Southbend SOUB940000201 Thermostat BJWA 3/16" X 12" Blub 36" Capillary
Special Price $161.12 Regular Price $248.25
In stock
SKU
SOUB940000201
Manufacturer:
The Southbend SOUB940000201 Thermostat is a temperature control system installed in a gas cooking system to regulate the operation of the burners. It has a 3/16-inch by 12-inch sensing bulb, a 36" capillary and stem that measures temperature within the cooking space. The thermostat regulates the flow of gas in the control valve as the temperature varies to achieve the desired temperature. It is installed in the gas control system of the appliance and is fundamentally essential in controlling the heat output and assisting in the maintenance.
Dimensions
- Length: 12.5 In
- Width: 6.7 In
- Height: 2 In
- Weight: 1.02 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- Temp Low-150-500, Bulb 3/16" X 12", Cap 36", Out 7/16" Cct
- "C" Rear, Rotation 90 Cw
- For 300 & 400 Series Use Dial # 22-1381 W/ 1-3/8"
- Stem. Southbend Oven Series: 400 After 10/97. Series: 300
- 1/88 & After. (Units Prior To 1/88 Use Type Bjfma T'Stat
- # 46-1048 W/[Pilot Fitting )
- Dial To Use # 22-1210 Off-Low-250-500
- ***461285 Is Thermostat Only.
- If Southbend B94-00002-01 Kit Is Needed, Use Ap# 8013586.
- If Southbend B94-00001-01 Kit Is Needed, Use Ap# 8013587
- ***
