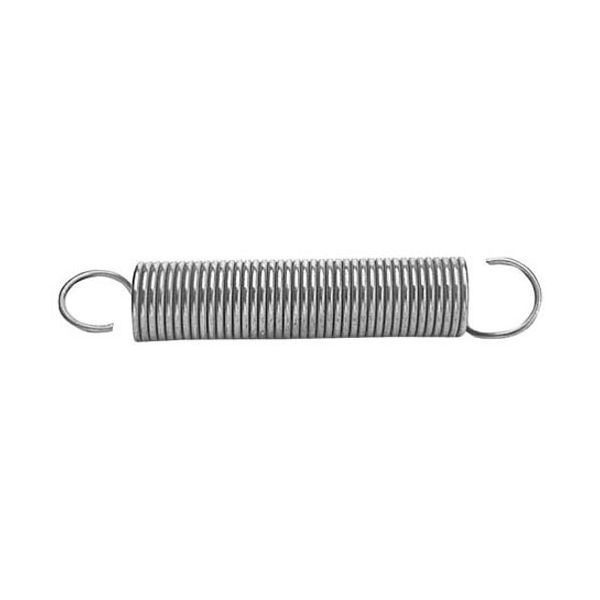

Southbend SOUP1089 Oven Door Spring 1-1/4" X 5"

Be the first to review this product
Special Price $35.74 Regular Price $56.73
In stock
SKU
SOUP1089
Add to Wish List
Electrical & Hardware, Springs,
Manufacturer:
The Southbend SOUP1089 Door Spring is applied in the control of the movement and balance of the commercial oven. The spring is installed between the frame and door of the oven, and counterbalance tension assists in opening and closing the door without any sudden falls and slamming. When the door is opened, the spring possesses mechanical energy and gives it out gradually when it is closed. This feature is meant to reduce the load of hinges and to be sure that the door gasket is properly placed so that the door forms an airtight seal and maintains even internal temperatures.

Dimensions

  • Length: 6.5 In
  • Width: 1.25 In
  • Height: 1.25 In
  • Weight: 0.6 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-soup1089-door-spring-1-1-4-x-5-95599.jpg

Product Notes

  • Door Spring, 1-1/4" Wide X 5" Coil Length X 6-3/4" Overall
  • Length (38 Coils)),
  • Southbend 324E, 336A, 336A-1Gl, 336A-2Gl, 336A-2Gr,
  • 336A-2Tl,
  • 336A-2Tr, 336A-3G, 336A-3T, 336D, 336D-1Gl, 336D-2Gl,
  • 336D-2Gr, 336D-2Tl, 336D-2Tr, 336D-3G, 336D-3T, 348Ee,
  • 348Ee-2Gl, 348Ee-2Gr, 348Ee-2Tl, 348Ee-2Tr, 360Aa,
  • 360Aa-2Gl, 360Aa-2Gr, 360Aa-2Rr, 360Aa-2Tl, 360Aa-2Tr,
  • 360Aa-3Gl, 360Aa-3Gr, 360Aa-3Tl, 360Aa-3Tr, 360Ad,
  • 360Ad-2Gl, 360Ad-2Gr, 360Ad-2Rr, 360Ad-2Tl, 360Ad-2Tr,
  • 360Ad-3Gl, 360Ad-3Gr, 360Ad-3Tl, 360Ad-3Tr, 360Dd,
  • 360Dd-2Gl, 360Dd-2Gr, 360Dd-2Rr, 360Dd-2Tl, 360Dd-2Tr,
  • 360Dd-3Gl, 360Dd-3Gr, 360Dd-3Tl, 360Dd-3Tr, 424E, 436A,
  • 436A-1Gl, 436A-2Gl, 436A-2Gr, 436A-2Tl, 436A-2Tr, 436A-3G,
  • 436A-3T, 436D, 436D-1Gl, 436D-2Gl, 436D-2Gr, 436D-2Tl,
Reviews
Write Your Own Review
You're reviewing:Southbend SOUP1089 Oven Door Spring 1-1/4" X 5"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend SOUP1089 Door Spring?

Regularly inspect door spring for tension loss, corrosion, and wear. Lubricate pivot points with food-safe lubricant, ensure secure mounting, and clean debris. Proper maintenance ensures smooth door operation, prevents sudden failure, and reduces safety hazards during use.

What are common issues with the Southbend SOUP1089 Door Spring?

  • Loss of tension causing weak door return.
  • Squeaking noise during operation.
  • Corrosion or rust buildup.
  • Spring snapping or breakage.
  • Door misalignment or sticking.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and gas supply and let door cool completely for safety.

Step2: Remove door panel or cover to access spring assembly.

Step3: Note orientation of old spring and carefully remove it using pliers.

Step4: Install new spring aligning hooks and tension points correctly.

Step5: Reassemble components and test door tension and movement.

Step6: Restore power and verify smooth operation, checking for pinch hazards.
