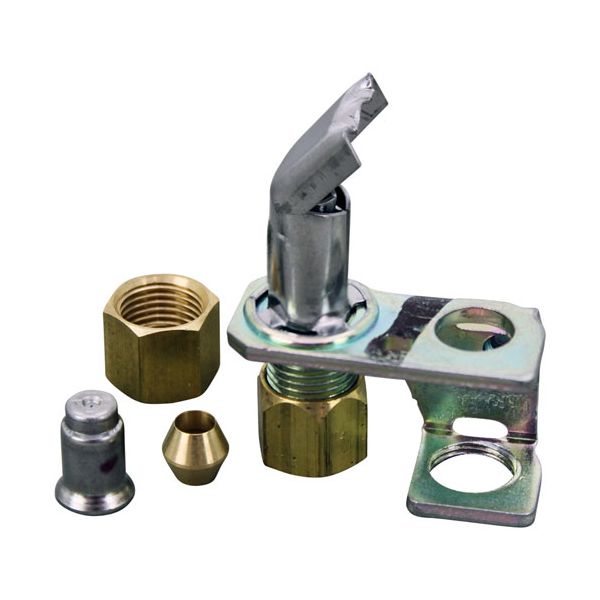

029769 Pilot Kit W/ Orifices, 3/16" & 1/4" Tube Size

Be the first to review this product
Special Price $23.09 Regular Price $41.23
In stock
SKU
029769
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:

The Keating 029769 Pilot Kit is created to assist in the provision of dependable ignition to the Keating gas griddles and other commercial cooking appliances. The kit supplies a small, sustained pilot flame by its 3/16 and 1/4 gas tubing. The orifice limits and controls the flow of the gas so that the pilot flame is kept constant and of the right size, which is vital to the safe ignition of the main burner. The main gas flow is ignited by the persistence pilot flame when the main burner is switched on so that the startup becomes smooth and safe.

Dimensions

  • Length: 2 In
  • Width: 0.7 In
  • Height: 2 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/k/e/keating-029769-pilot-kit-with-orifices-3-16-1-4-tube-size-76338-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 2Ch-2, Tube Size 3/16" & 1/4",
  • Flame Pattern Right
  • Kit Includes : Pilot Orifice .010, Pilot Kit, Sleeve 1/4 X
  • 3/16,Nut 1/4 X 3/16
  • Lp Orifice # 26-1554
  • Nat Orifice # 26-1555
  • Garland Grill G24, Fryer G22-14F
  • Keating Griddle, Miraclean Gas Griddle Pre-2000 Series
  • Wolf Model?
FRYMASTER:
KEATING:
002401, 029769, 2401, 29769, H00040H, KEA002401, KEA029769, KEA2401, KEA29769
SOUTHBEND:
U-LINE:
1830-210, 1830-21K, 2C2, 2CH2
VULCAN HART:
Reviews
Write Your Own Review
You're reviewing:029769 Pilot Kit W/ Orifices, 3/16" & 1/4" Tube Size
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Keating 029769 Pilot Kit?

Regularly inspect the pilot kit for debris, soot buildup, or blockages in the orifices and tubing. Clean components carefully to maintain proper gas flow and ignition performance. Ensure fittings are tight and leak-free. Always shut off gas supply before servicing.

What are common issues with the Keating 029769 Pilot Kit?

  • Clogged orifices restricting gas flow.
  • Weak or inconsistent pilot flame.
  • Gas leaks at connection points.
  • Difficulty igniting pilot.
  • Improper flame size due to incorrect orifice usage.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow unit to cool completely safely.

Step2: Remove existing pilot assembly and access panel.

Step3: Install new pilot kit securely onto mounting bracket.

Step4: Connect gas tubing and tighten fittings properly firmly.

Step5: Check alignment and ensure stable flame path.

Step6: Restore gas and test for leaks using soap solution carefully.
