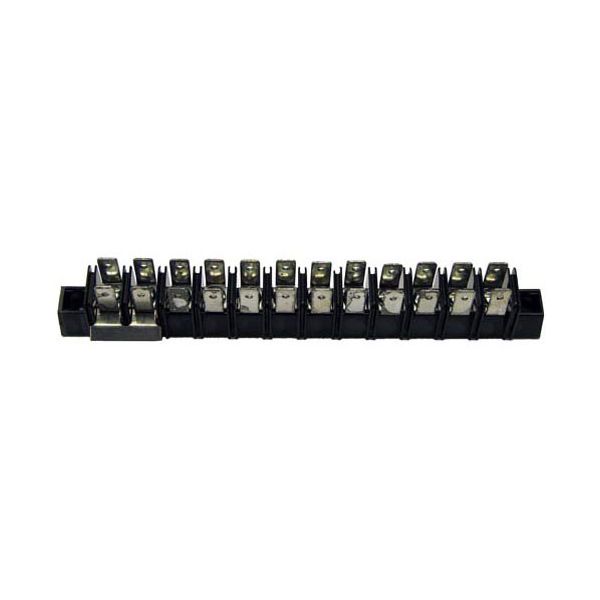

Imperial 1136 Terminal Block

The terminal block is a multi-connection electrical component commonly found in commercial ovens, serving as a central hub for wiring and organizing various components within the oven. It has 12 positions and 24 male 1/4" push-on electrical connections. With mounting centers spaced 5-11/16" apart, it is designed to fit compatible oven control panels and wiring layouts. This component is important for maintaining secure and organized electrical distribution within cooking equipment. It is widely used in commercial ovens found in restaurants, bakeries, and foodservice facilities where consistent electrical flow is required. When wiring connections become loose, damaged, or disorganized, replacing the terminal block can help restore proper electrical routing, reduce connection issues, and support stable equipment operation during regular use.

Equipment Compatibility:
Primary applications for Imperial Terminal Block include commercial ovens and heavy-duty cooking equipment used in restaurants, bakeries, and foodservice operations where organized multi-wire electrical connections are required for stable power distribution and reliable control system performance. This Terminal Block 1136 is compatible with commercial equipment from leading brands such as Imperial, and more, where secure electrical connectivity is required for safe operation and consistent equipment performance.

Brand Compatibility:
This part replaces several original terminal block parts used in compatible oven systems. Full replacement details are provided separately.

Product Specifications:
Product Type: Terminal Block
Manufacturer: Imperial
SKU: 1136
Positions: 12
Terminals: 24 male 1/4" push-on connections
Mounting Centers: 5-11/16" spacing
Use: Electrical wire connection in ovens

Key Features:

• Provides 12 spots to connect wires neatly in one place.
• Includes 24 push-on terminals that hold wires tightly and safely.
• Uses 1/4-inch connections that are common in commercial equipment.
• Fits properly with 5-11/16" mounting spacing inside the oven.
• Replacing a damaged block helps fix loose wires and keeps the oven working right.

Installation Feedback:

Installation feedback often mentions more secure wiring connections and improved electrical stability after replacement.
