Montague 3376-6 Thermostat W/Dial 150°F-400°F 3/16" X 11-5/8" Bulb 48" CAP BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
3376-6
Manufacturer:

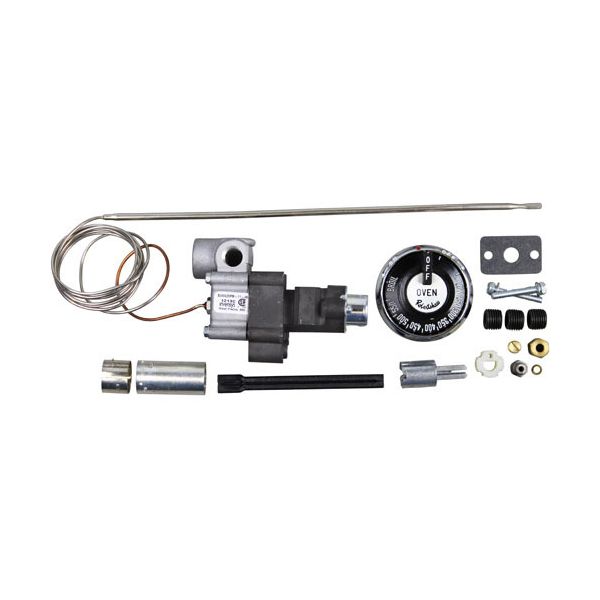

The Montague 3376-6 Thermostat W/Dial BJWA senses heat through its 3/16-inch by 11-5/8-inch bulb and transfers temperature changes through the 48-inch capillary tube to regulate the connected heating circuit. The adjustable dial provides a temperature range from 150°F to 400°F, allowing the thermostat to cycle the heat source as the selected setting is reached during operation. This element is installed behind the control panel of compatible commercial cooking equipment, with the sensing bulb positioned inside the heated compartment to monitor and control operating temperatures.
Dimensions
- Length: 13.75 In
- Width: 4.25 In
- Height: 3.5 In
- Weight: 1.3 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
- 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
- [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
- Adapters, Gasket, Screws ] Wide Flange.
- Black Dial W/ Adapter = # 22-1028 ]
- Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
- 410,415,416,426).
- Series: Gra & Grax & Grc With S/N 1000000 To 1008568
- &1017255 & After.
- Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
- Us Range Oven Series Performer Ii
- Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).
