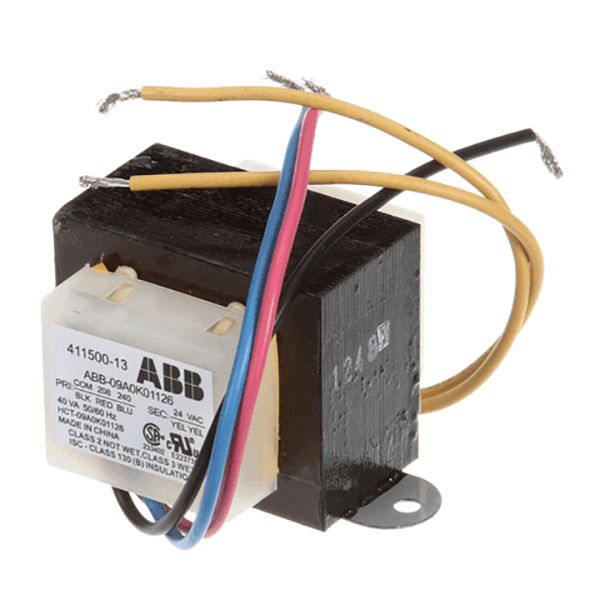

Vulcan Hart 00-411500-00013 Transformer
$95.10
In stock
SKU
00-411500-00013
The Vulcan Hart 00-411500-00013 Transformer is an electrical part that is used to transform the level of voltages to facilitate the functioning of commercial cooking appliances. It is placed in the control panel of the appliance in order to make sure that the ignition systems, thermostats, and other electronic controls are operating properly. It also allows the equipment to operate consistently between high- and low-voltage circuits by supplying the appropriate voltage adjustment so that coordinated operation between high-voltage and low-voltage circuits can be achieved. This element is usually applied in range and oven units to control electrical flow.
Manufacturer:
Dimensions
- Length: 1 In
- Width: 1 In
- Height: 1 In
- Weight: 1.52 lbs
Product Notes
- Transformer,
- Primary 200-240 Vac
- Secondary 24 Vac, Enclosed Coil.
- 2 Mount Holes, (5) 8" Wire Leads
- Vulcan Oven Sg4D, Sg6D, Vc4Gd, Vc4Gs, Vc6Gd, Vc6Gs (Units
- W/O Cook & Hold)
- Fryer Series: Er
